Heavy Phase Positive Pressure Powder Deliver

Heavy Phase Positive Pressure Powder Deliver

Design and construction of smooth powder delivery The JOYU concentrated phase positive pressure powder conveying system is designed for the rigorous work of powder conveying in critical applications. Each JOYU concentrated phase positive pressure powder conveying system, regardless of its specific design or application, operates in a fully welded delivery tank structure and collection tank structure and in a conveying pipeline for a particular process; The design of the powder conveying system differs from the one common on the market. The JOYU durable ceramic elbow quick connection flange sealing structure and control enables all automation and control functions to be centralized into the central control unit. This JOYU durability design and integrated construction and control infrastructure provide the foundation for lower usage costs while improving powder delivery efficiency and safety.

下载文件

功能与集成

Conical sending tank assisted pulse blowing feed

The JOYU concentrated phase positive pressure powder conveying system is designed for the rigorous work of powder conveying in critical applications. Each JOYU concentrated phase positive pressure powder conveying system, regardless of its specific design or application, operates in a fully welded delivery tank structure and collection tank structure and in a conveying pipeline for a particular process; The design of the powder conveying system differs from the one common on the market. The JOYU durable ceramic elbow quick connection flange sealing structure and control enables all automation and control functions to be centralized into the central control unit. This JOYU durability design and integrated construction and control infrastructure provide the foundation for lower usage costs while improving powder delivery efficiency and safety.

Low pressure feed increases service life

JOYU thick phase positive pressure powder conveying system can transport powder continuously to the far end at 0.2MPa pressure, Regulating the required pressure and flow in the pipeline for optimum conveying capacity. The disc valve is fitted to connect the inlet and outlet, Effective formation of confined space to improve smooth conveying and clean feeding control. JOYU concentrated phase positive pressure powder conveying system includes pulse dust removal system design, can improve the material flow of powder, and achieve better environmental standards, protect clean workshop environment, improve equipment life.

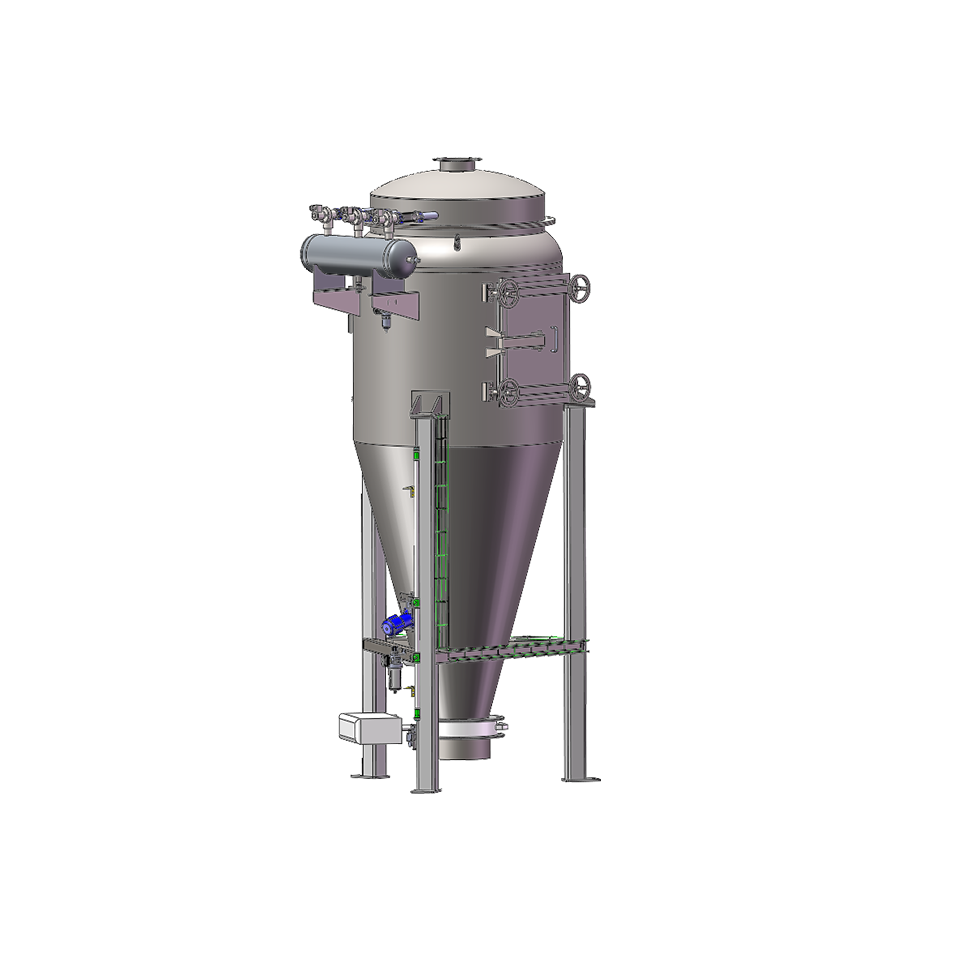

Collection Tank Pulse Blowback Control System

When the characteristics of the conveying material in the pipeline reach the collection tank, the normal material flow is hindered. And when the discharge is not smooth, the JOYU collection tank pulse conditioning system starts blowback function, Pulse blowback is a necessary component of the JOYU powder conveying system. Designed to continuously induce material flow to reach the bottom of the tank to ensure stable and reliable material delivery.

Blow repeatedly to ensure clean discharge

For optimal conveying effect and no residue, the central control unit sends a repeated blow signal to achieve a full purge of the powder in the tank and the inner wall of the pipe, which is used to completely feed the wall of the powder into the untied, through the outlet to achieve the perfect conveying function. The JOYU central control unit is the core module of the dense phase positive pressure powder conveying system. It coordinates the process for better coordination of all institutions, improves conveying performance, reduces dust pollution and optimizes process efficiency.

safety function

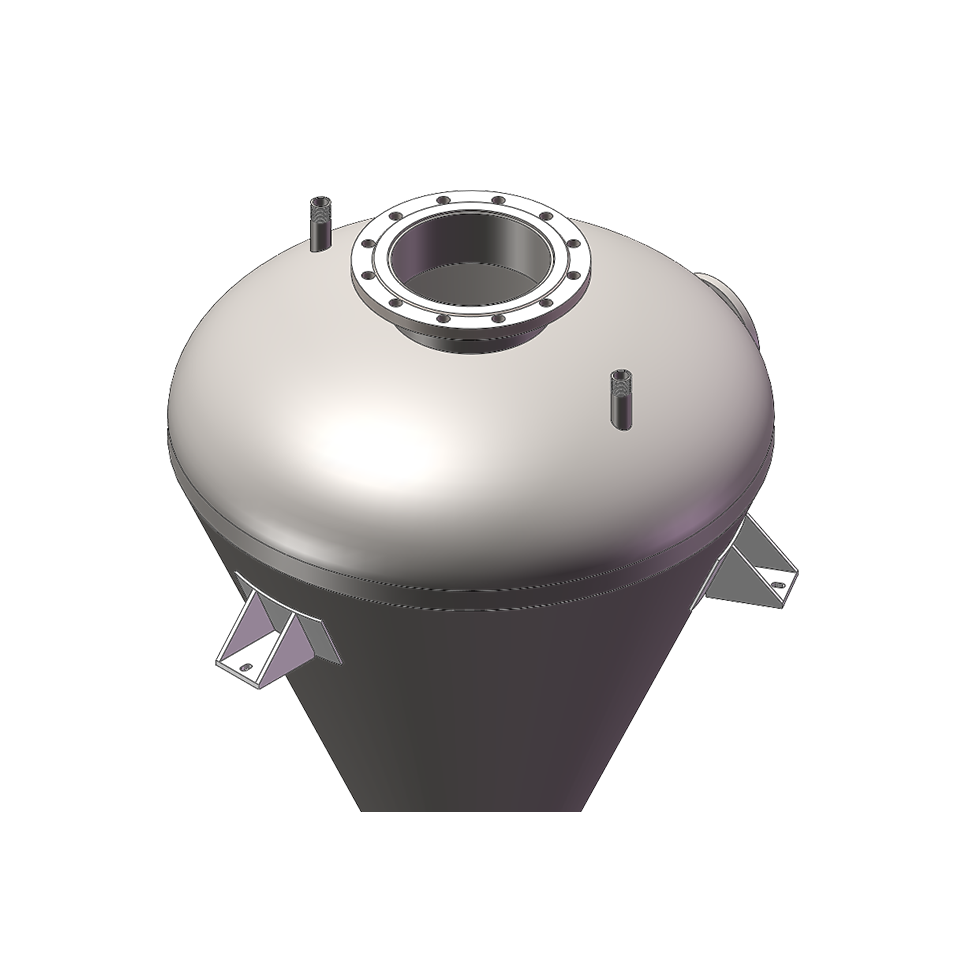

Fully welded sealed steel structure and interlocking safety system to ensure operator safety, product safety and process complexity; Stable durability and safety protection are all goals in the highly automated, modular integrated structure and efficient production of JOYU's dense phase positive pressure powder conveying system.
