Feeding

Ton bag discharge station

Scope:

High Capacity Ton Automatic Feeding Applications, High Performance Automation

500Kg-1500kg multiple types of bag raw materials automatic unloading, feeding use, a large range of reduced manual operation, high performance automation to achieve automatic vibration bag, drop, dust removal, conveying and other comprehensive functions.

Special works

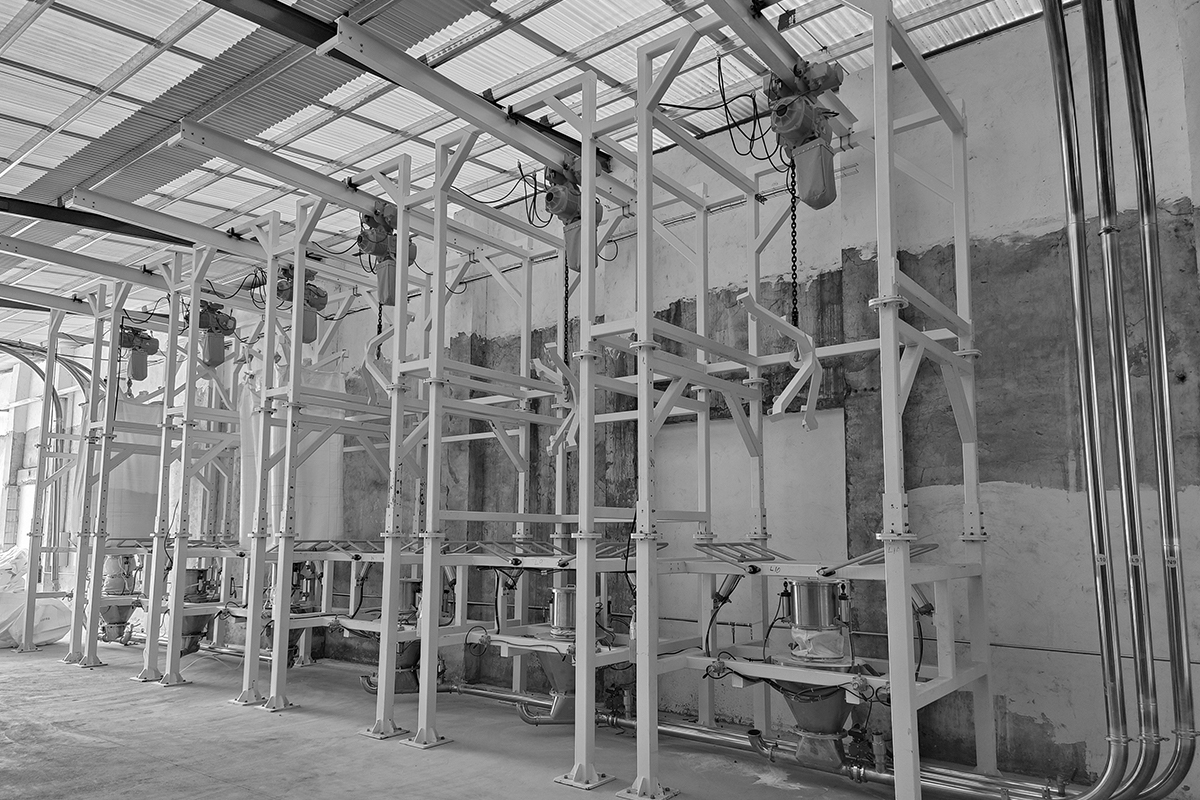

Each ton bag discharge station consists of a thick-walled carbon steel square tube and a heavy H steel, stainless steel plate (tube) structure. Structural materials meet ANSI and ASME specifications to ensure reliable and low maintenance operation during continuous operation. The control and automation architecture of the 6-tonne dump system is done using PLC and a control system designed, programmed and built by JOYU. Six different material accumulation densities ranging from 300kg/m 3 to 1000kg/m 3 are available for on-site use. The pneumatic massage paddle has a specific pressure for adjusting ton bag shape and auxiliary material flow. The material falls from the closed pocket of the ton bag into the collection bucket via the fast-clamped robotic inner ring interface, where the dust pipe is connected to the closed-loop dust removal system and collected in the recycling bin under the dust removal system.

Project performance:

Reduced operator frequency of exposure to ton bags, ergonomics of operators and strict JOYU risk assessment procedures to ensure production safety.
