Dilute phase negative pressure powder conveying

Dilute phase negative pressure powder conveying

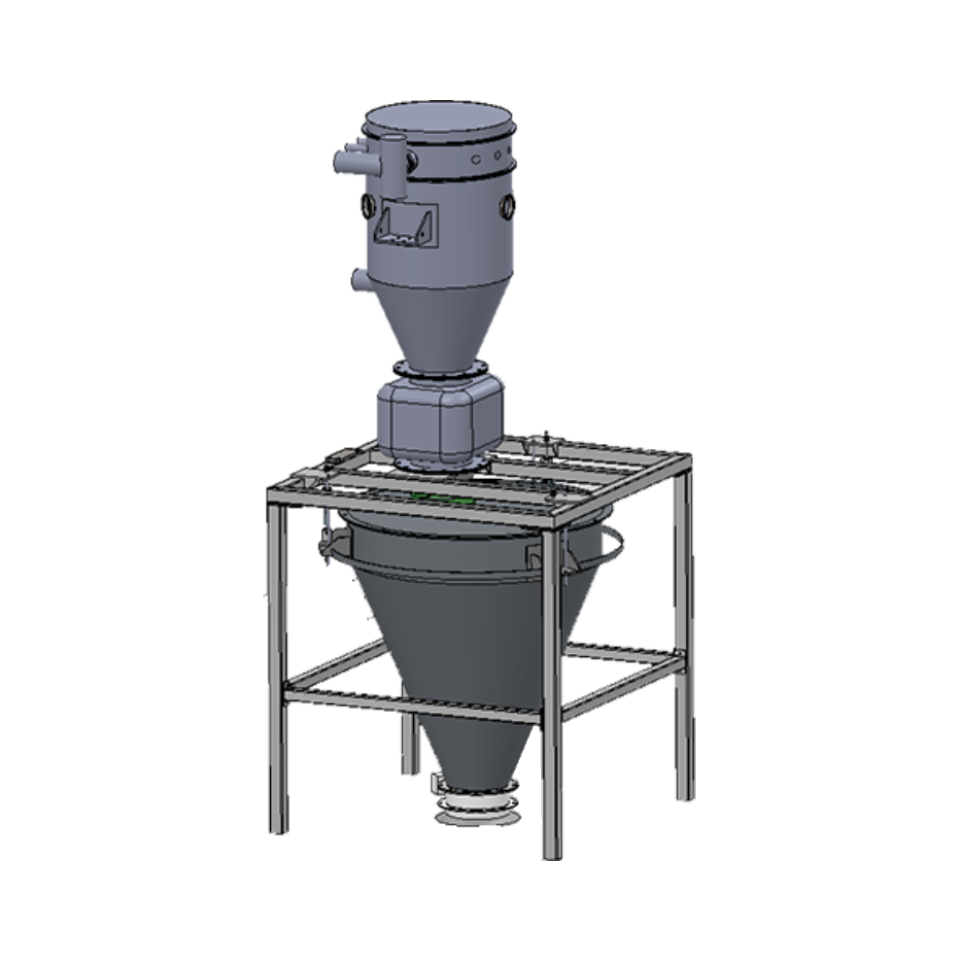

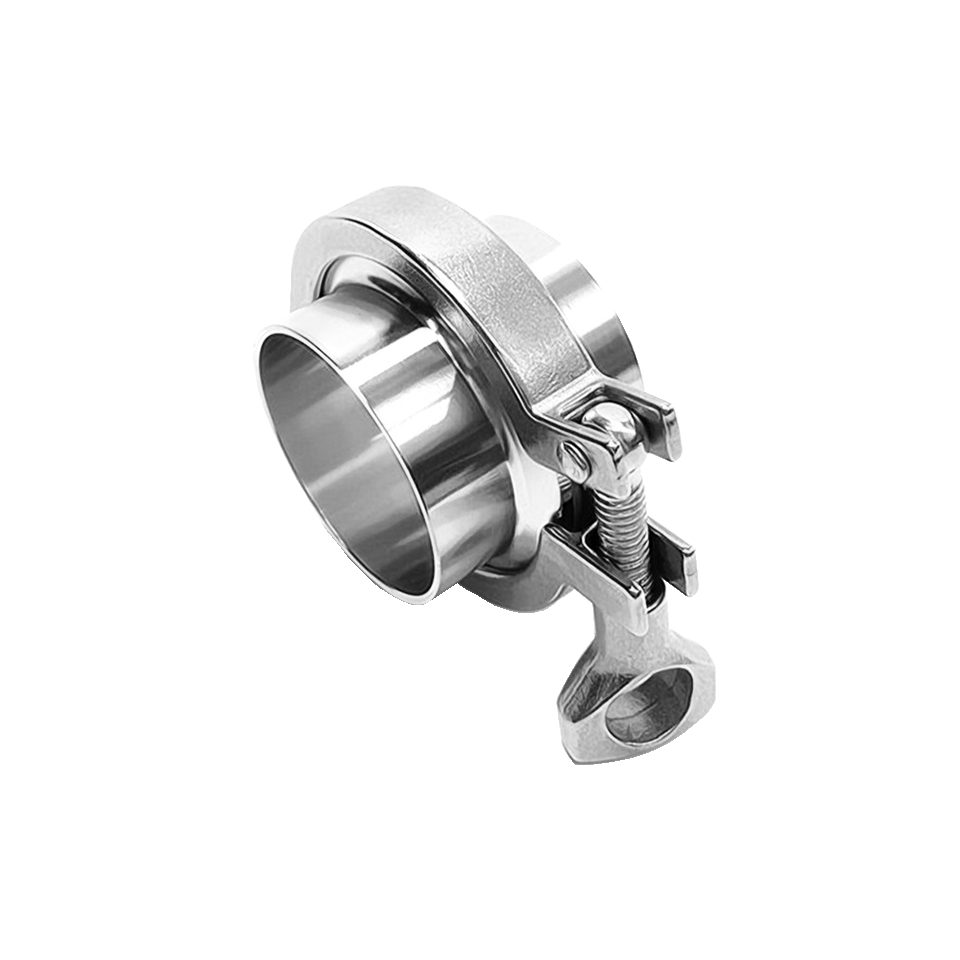

Design and construction of smooth powder conveying The JOYU dilute phase negative pressure powder conveying system is strictly designed for powder conveying in critical applications. Each JOYU powder conveying system, regardless of its specific design or application, operates within the conveying pipeline of a specific process; Different from the design of ordinary powder conveying systems on the market. The JOYU quick connect sealing structure and control functions are integrated into a PLC control unit. The construction and control implementation of this JOYU integration lays the foundation for reducing total costs, making maintenance simple, while improving process performance and smooth operation of the entire system.

下载文件

功能与集成

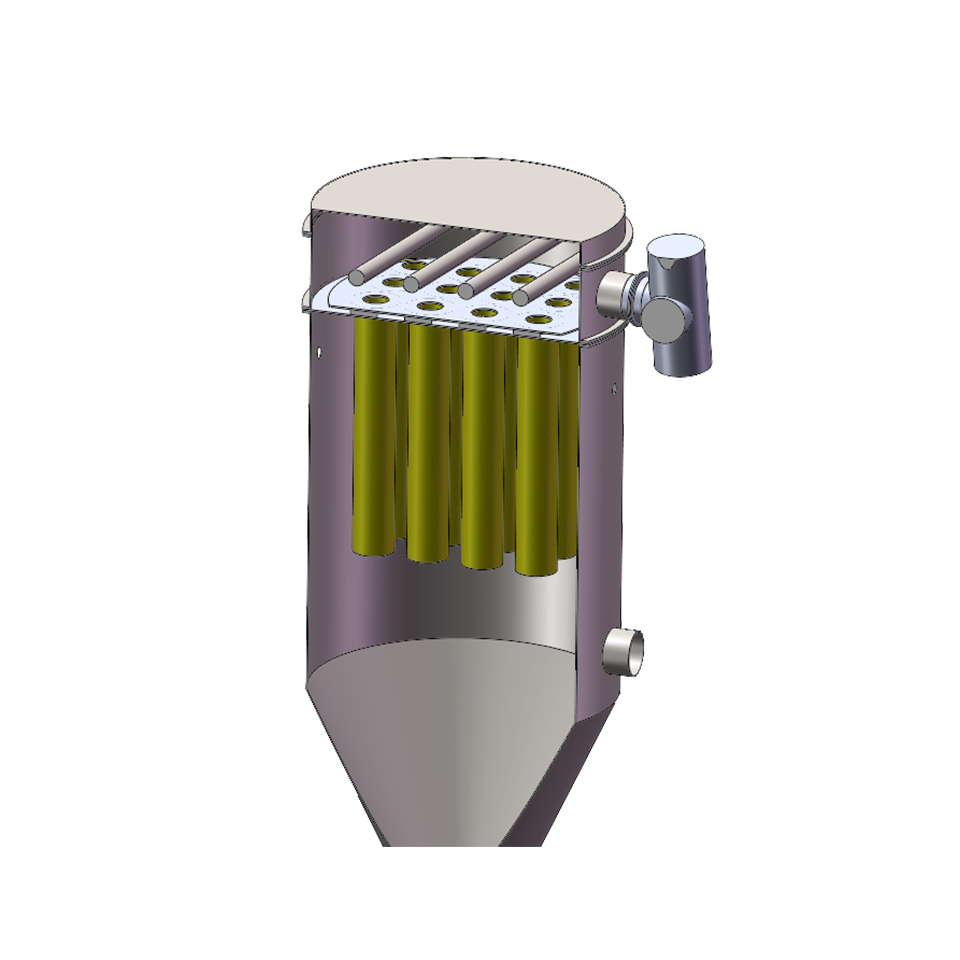

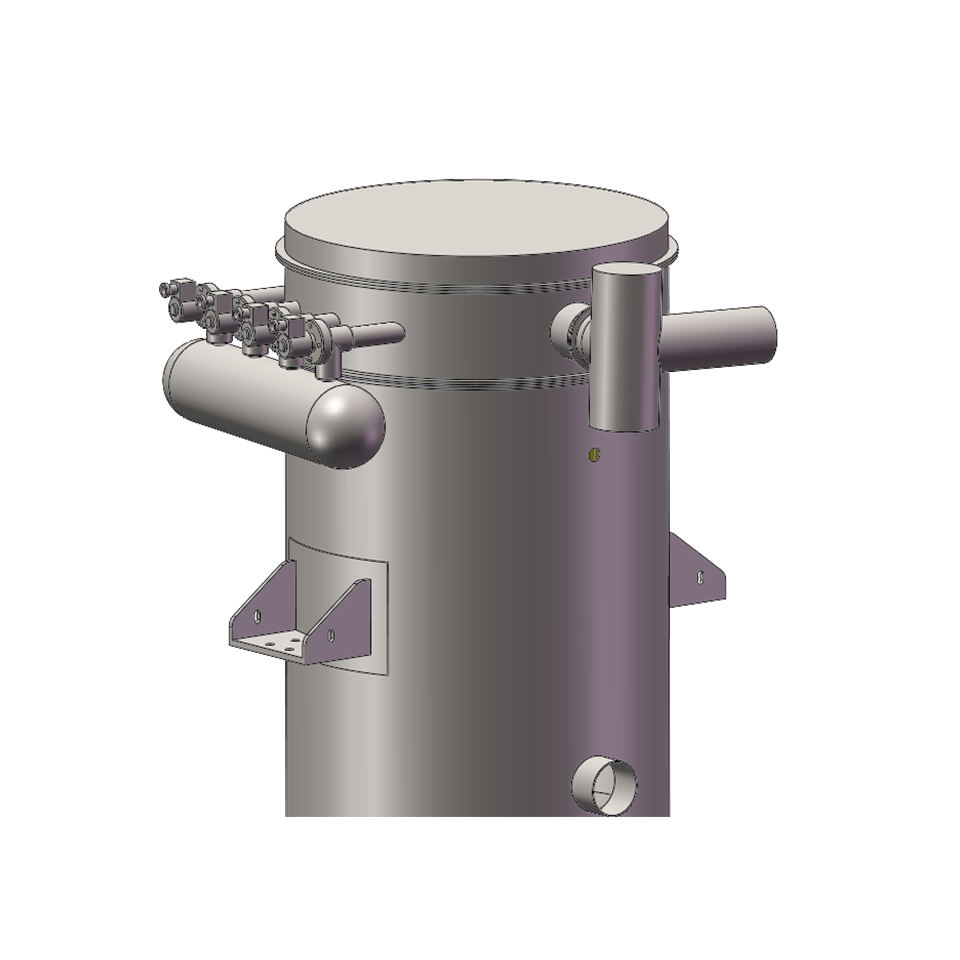

Feeding machine filter cartridge powder gas separation

JOYU vacuum feeding machine is designed for strict filtration of powder gas in critical applications. Each JOYU vacuum feeding structure, regardless of its specific design or application, uses a fully welded structure with a specific process to operate with stainless steel seamless pipes; Different from the commonly used feeding machine design in the market. The precision filter cartridge is made of stainless steel to ensure better powder gas separation rate, providing excellent structural integrity and usability. The combination of the feeding machine and the rotary valve can safely improve the conveying efficiency and meet the needs of different materials transportation.

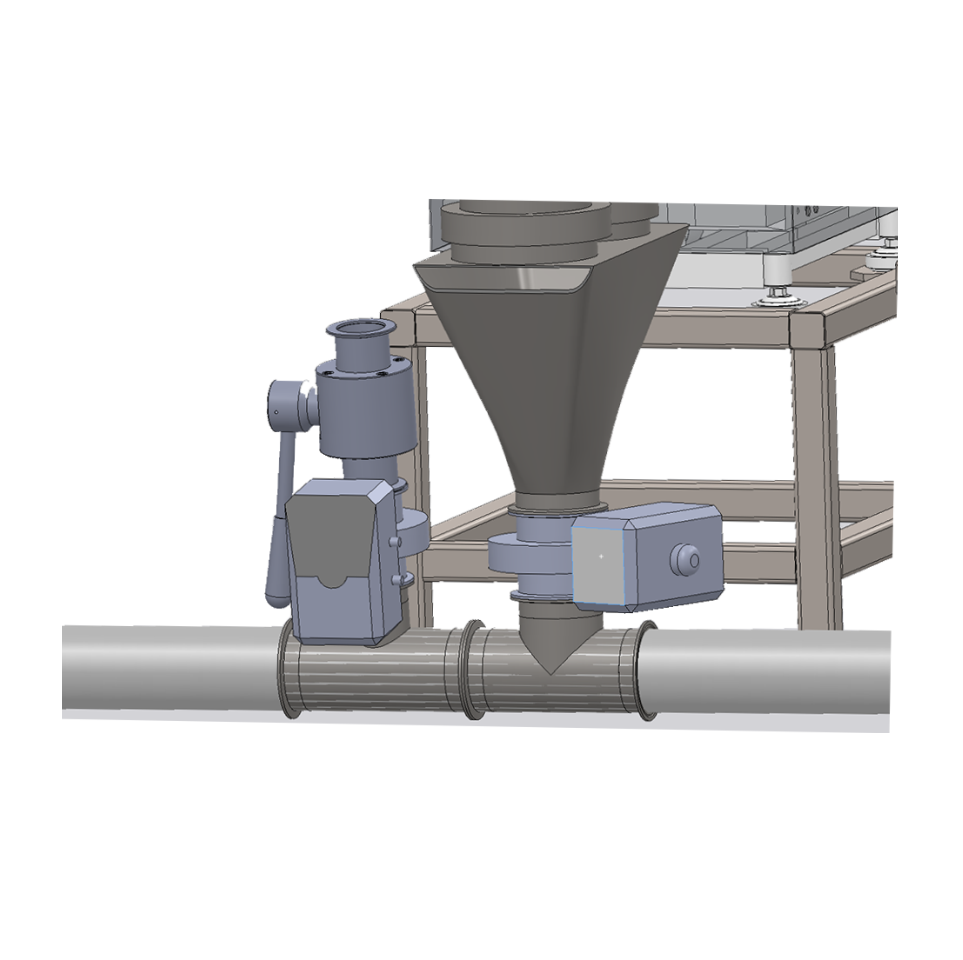

Quick regulating valve structure

JOYU negative pressure powder conveying system can adjust the required flow and air volume in the pipeline to achieve the best mixture. During the cooperation between the air inlet valve and the powder rotary valve, it can safely handle and improve the control of powder. The JOYU powder conveying system includes design options to improve the material flow of the powder and prevent the generation of columnar materials in the pipeline, improving smoothness.

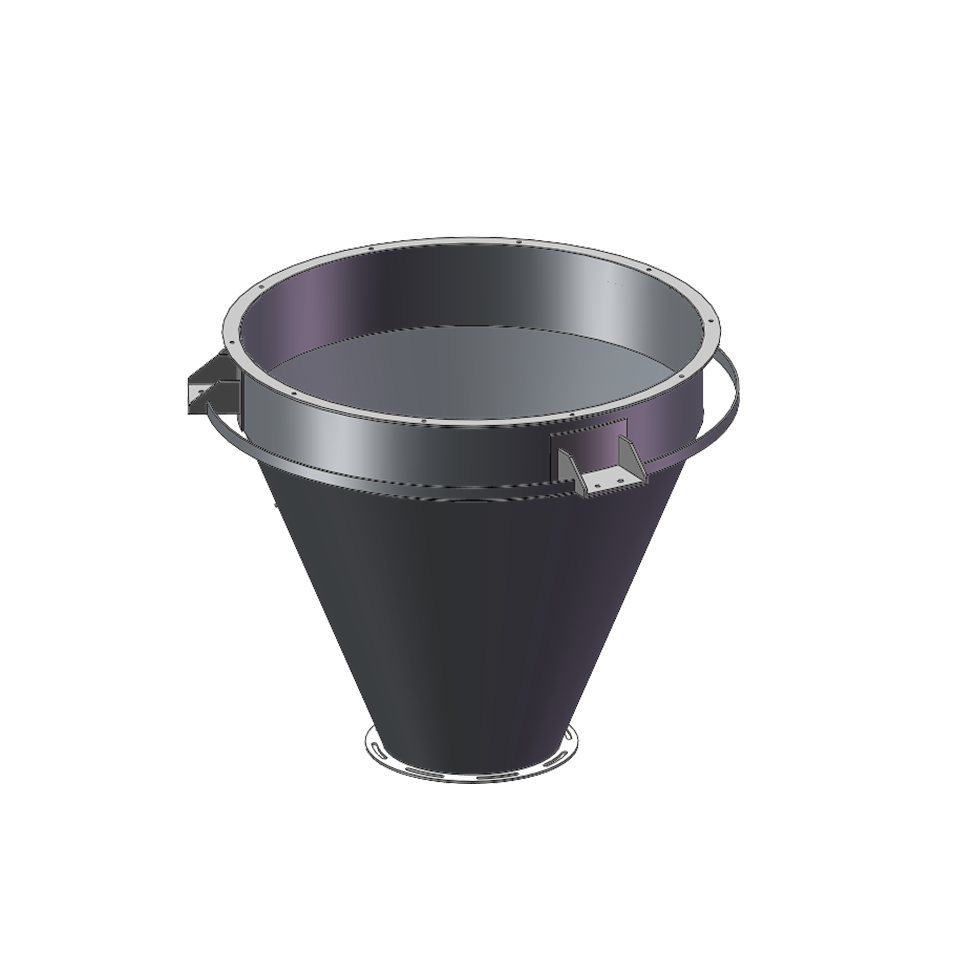

Rotary valve adjustable flow outlet interface

When used to interconnect the powder outlet with the powder container tank, the specifications for the outlet interface of the JOYU vacuum feeding machine first need to determine two important factors: the characteristics of the discharged material, the style and explosion-proof of the container used. It is from these factors that the JOYU outlet interface can be best specified to improve the demand for container capacity, reduce dust pollution, and optimize process efficiency

Safety functions

Operator safety, product safety, compliance factors, and process complexity; Each of these factors, and more, is the goal of JOYU's highly automated, modular integrated structure, and control infrastructure for the negative pressure powder conveying system
