Weighing, packaging, and stacking Conveying and Battling

Conveying and Battling

Conveying and palletizing design verified by multi-type bag operation JOYU conveying and palletizing are designed for automated bag operation in critical applications. Each JOYU conveying and battling, Regardless of its transport distance, bent diameter, tray size or ton bag entry requirements, Can meet the requirements of the design of production capacity, fully welded solid bracket and roller design, Unlike the common conveying and palletizing designs on the market. The modular and integrated structure and control components of JOYU enable all automation and interlock controls to be centralized into one PLC control unit. This JOYU integrated construction and control system lays the foundation for lower total cost of ownership, enhances operational stability, and improves process performance and the accuracy of shared production data across the enterprise.

下载文件

功能与集成

New automatic bagging, weighing, packaging, conveying, palletizing integrated system

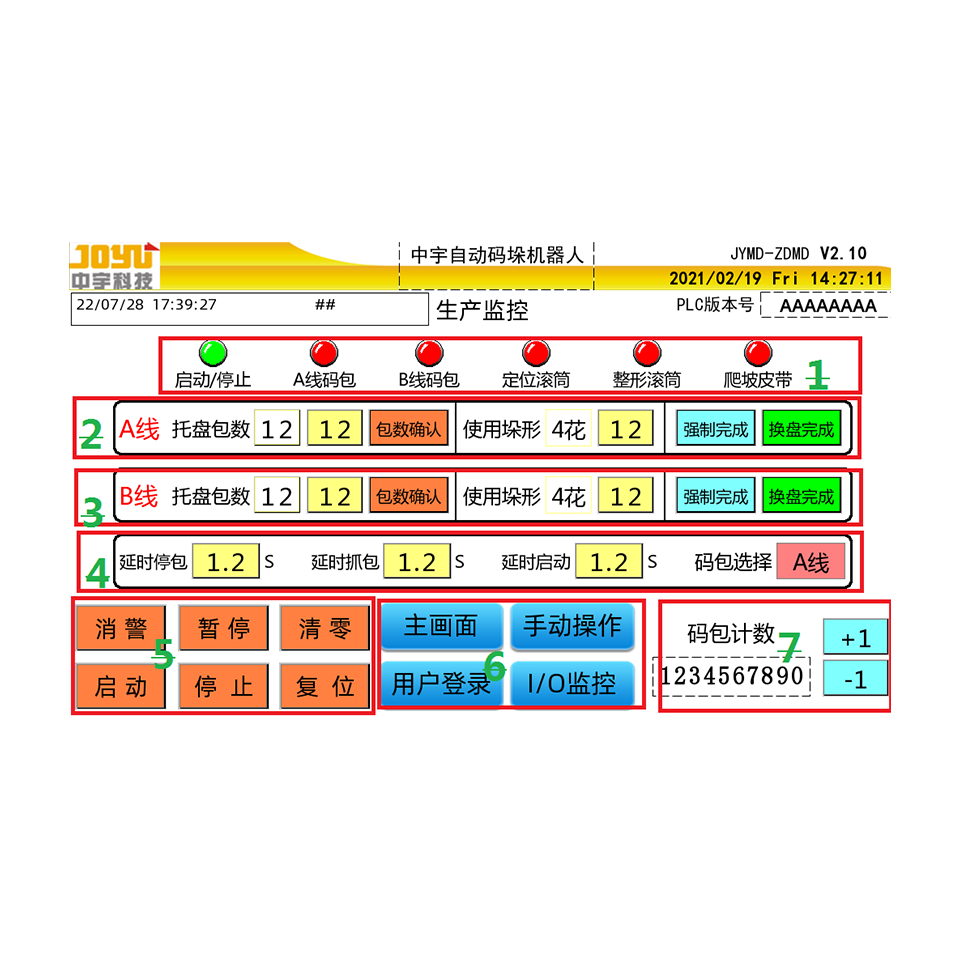

JOYU conveying and palletizing are designed for 20-50kg small bag automation applications. Each JOYU conveying and palletizing system, regardless of its specific case design or application, Combined belt conveying with roller conveying, combined PLC control with HMI human-machine dialogue, distributed subsystem and integrated control system, The underlying data stream is combined with cloud-based data. Unlike the common electronic control box and equipment separation control system design on the market, IoT embedded applications enable rapid implementation and processing of responses and feedback from all modules of a fully integrated system.

Automatic weighing and packing subsystem

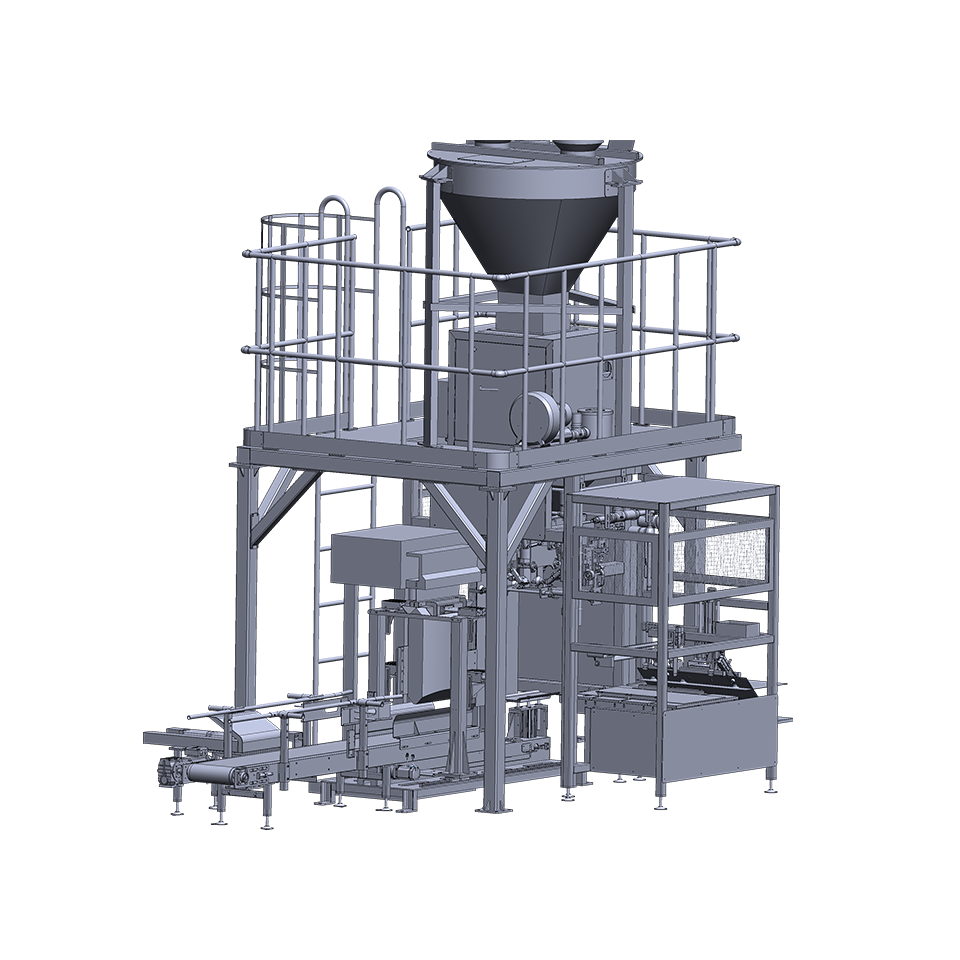

JOYU automatic weighing and packaging system products are rich, Can meet 20-50kg different specifications, different characteristics of particles, powder, sheet weighing and packaging function, Remote monitoring function for field users to provide remote I/O monitoring and parameter setting, system maintenance, reduce downtime.

Manual saving automatic bag feeding system

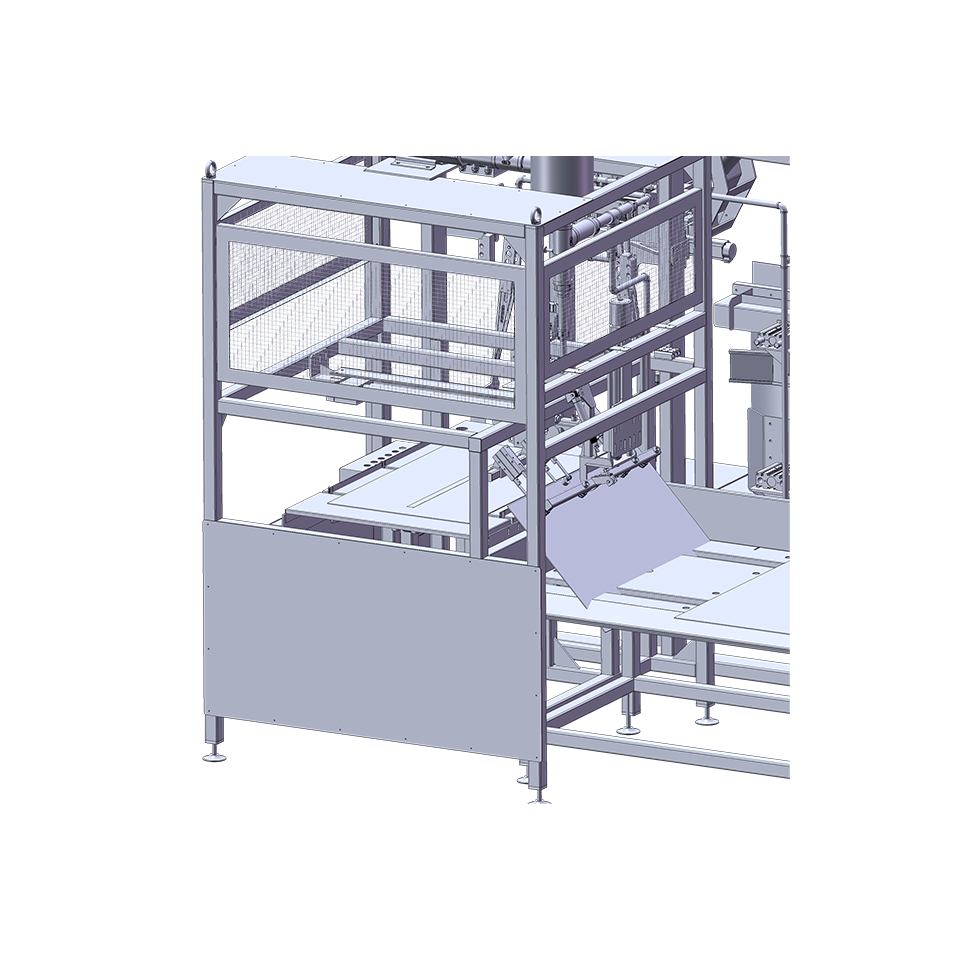

JOYU automatic bag feeding system is a component of conveying and palletizing system, modular assembly to complete automation as a whole necessary connection, is automatic weighing and conveying connector, to realize bag recharge, bag, bag drop, conveying function.

Diverse delivery subsystems

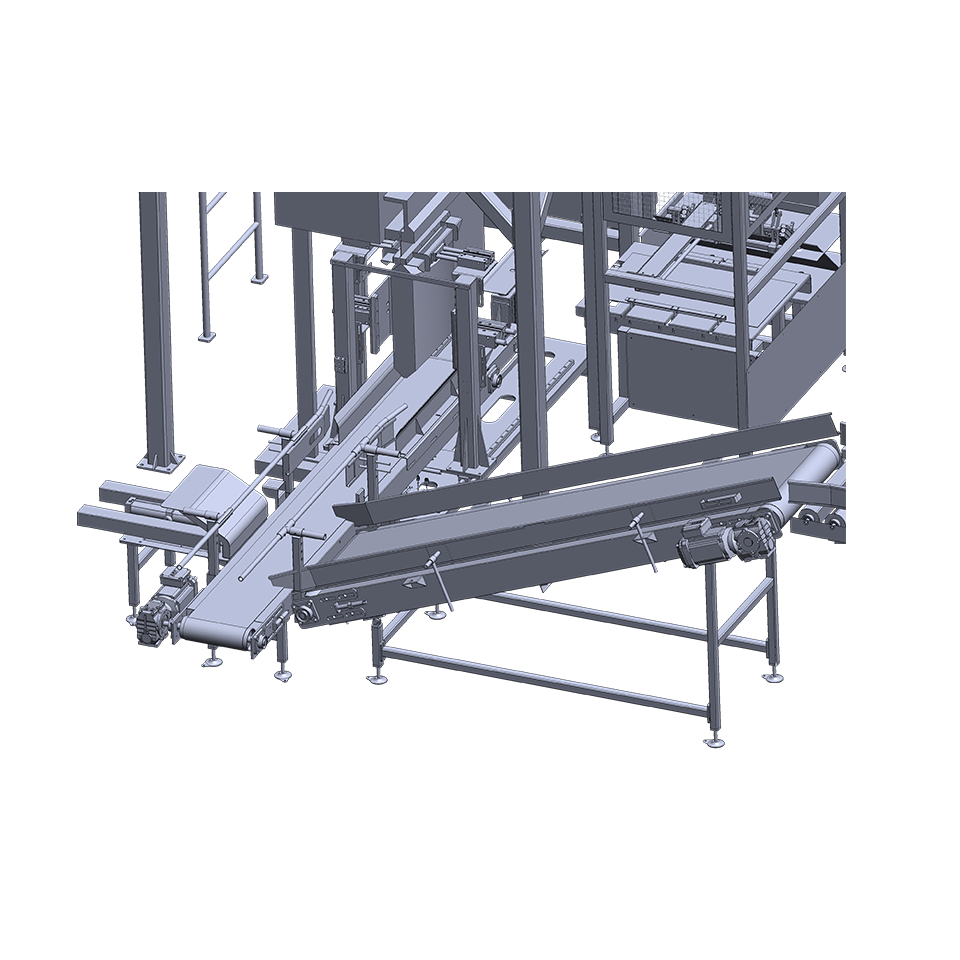

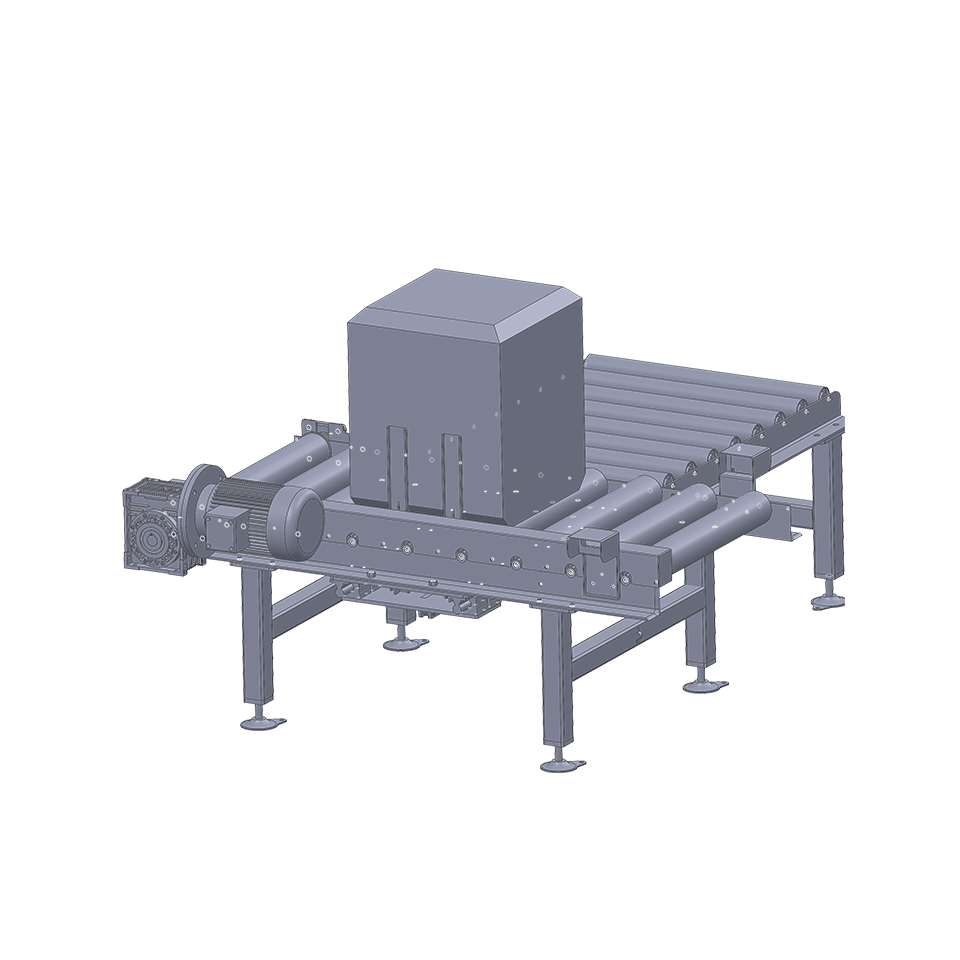

The JOYU conveying subsystem combines the advantages of air parts, logistics and basic chemical packaging. Meet the different speed, weight, width, corrosion, dust removal, lifting, gradient, bending and other multifunctional needs, It provides important conveying and guiding function for packing manipulator after sealing and palletizing. JOYU conveyor subsystem design can complete the weight detection, metal detection, steering, reversing, shaping, positioning, winding function of the finished product in a limited environment according to the demand, ensuring the conformance rate and uniformity of the finished product.

Rich palletizing options

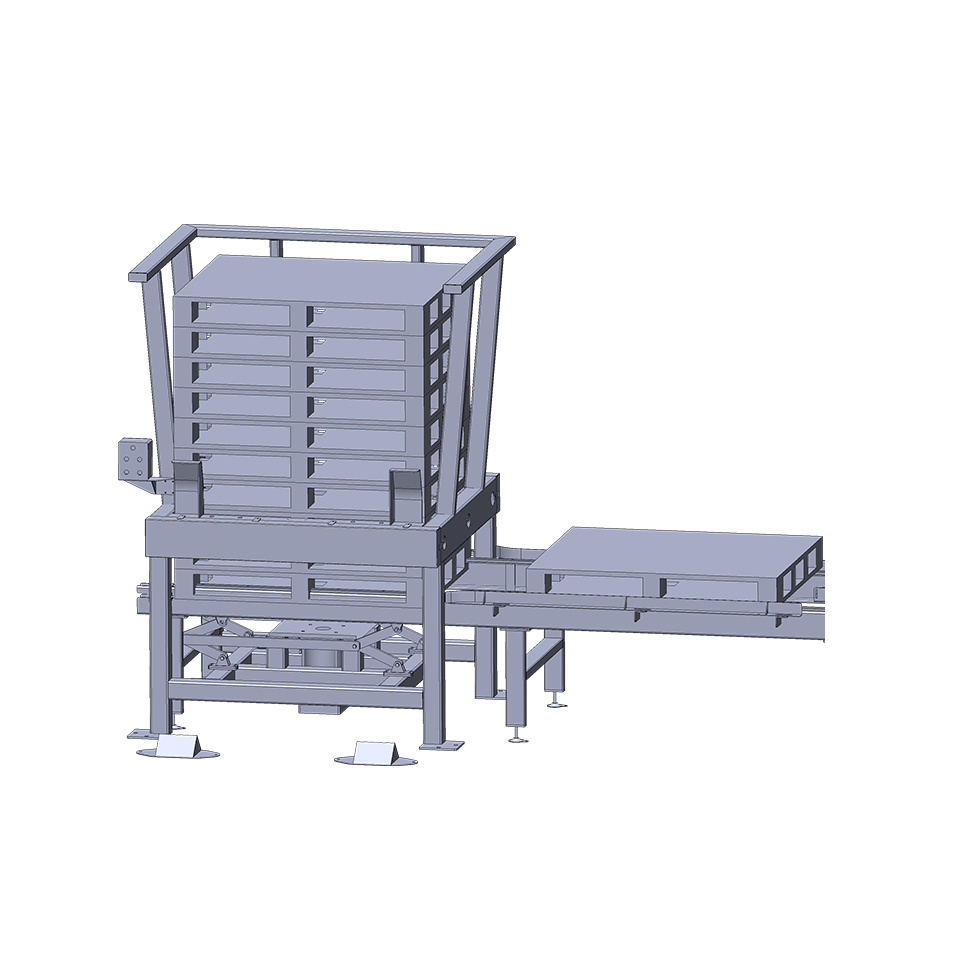

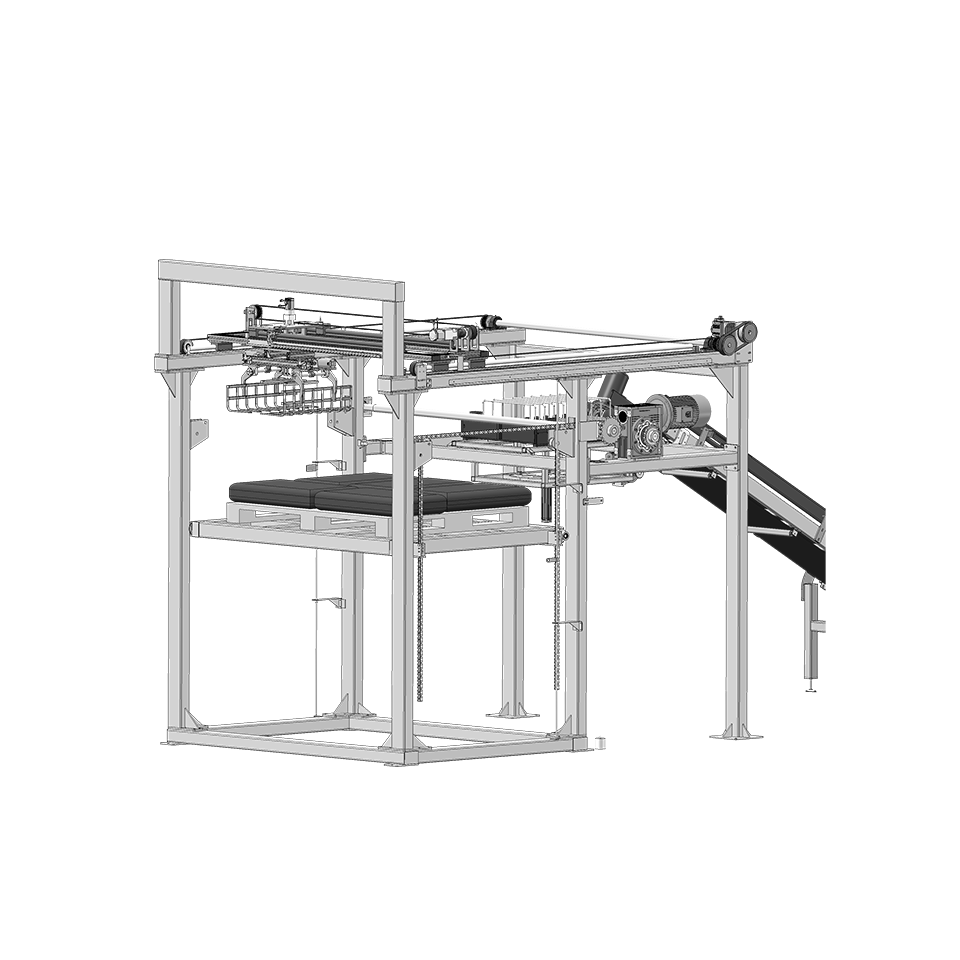

JOYU palletizing method using robot palletizing and high-level palletizing to choose, can be adapted to bag, box (Box), pouch into ton bag, barrel (Tanks) and other types of battlements, JOYU stacking mode of the variety of design can meet the different stamping plate, different packaging characteristics of the variety of choices. Save storage costs and improve efficiency while ensuring palletizing aesthetics.

Safety function

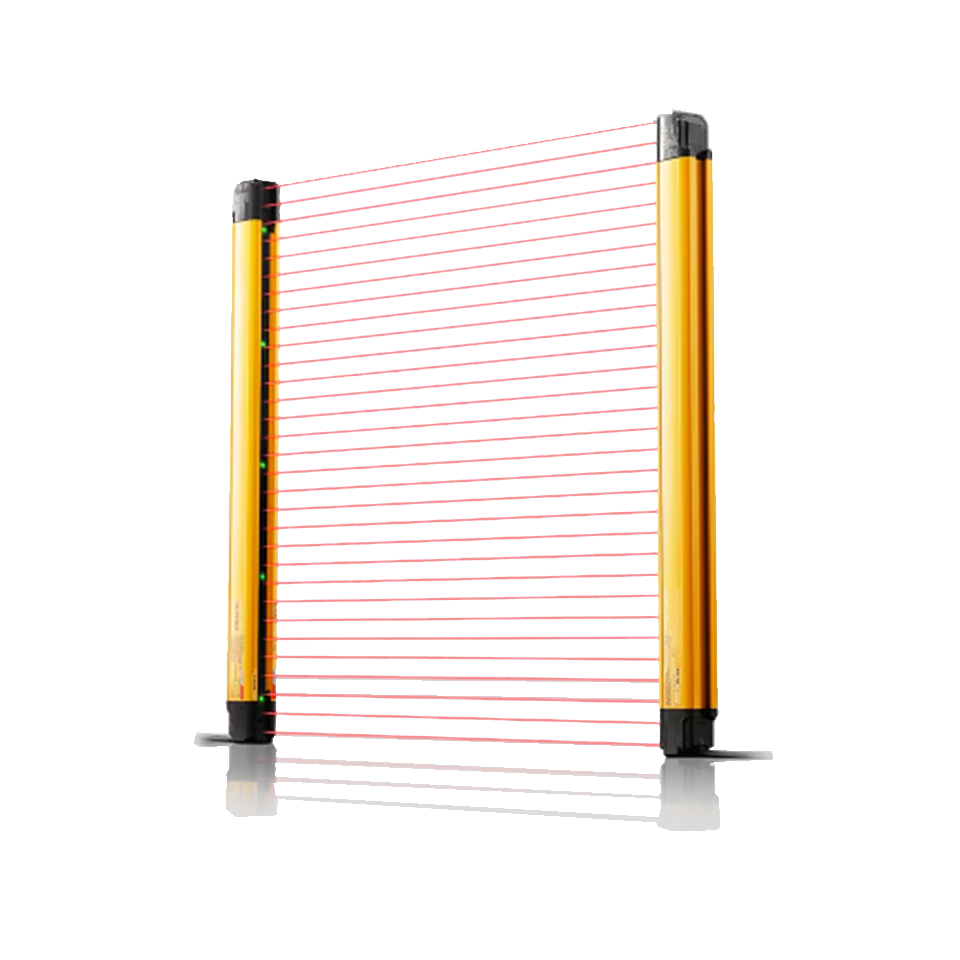

Safety accessories such as safety guardrail, safety grating, emergency stop switch are an important guarantee of operator safety and product safety, each of these factors, and more, are the basis for highly engineered, intelligent and efficient JOYU conveying and palletizing.
