Weighing, packaging, and stacking Automatic bag packing system

Automatic bag packing system

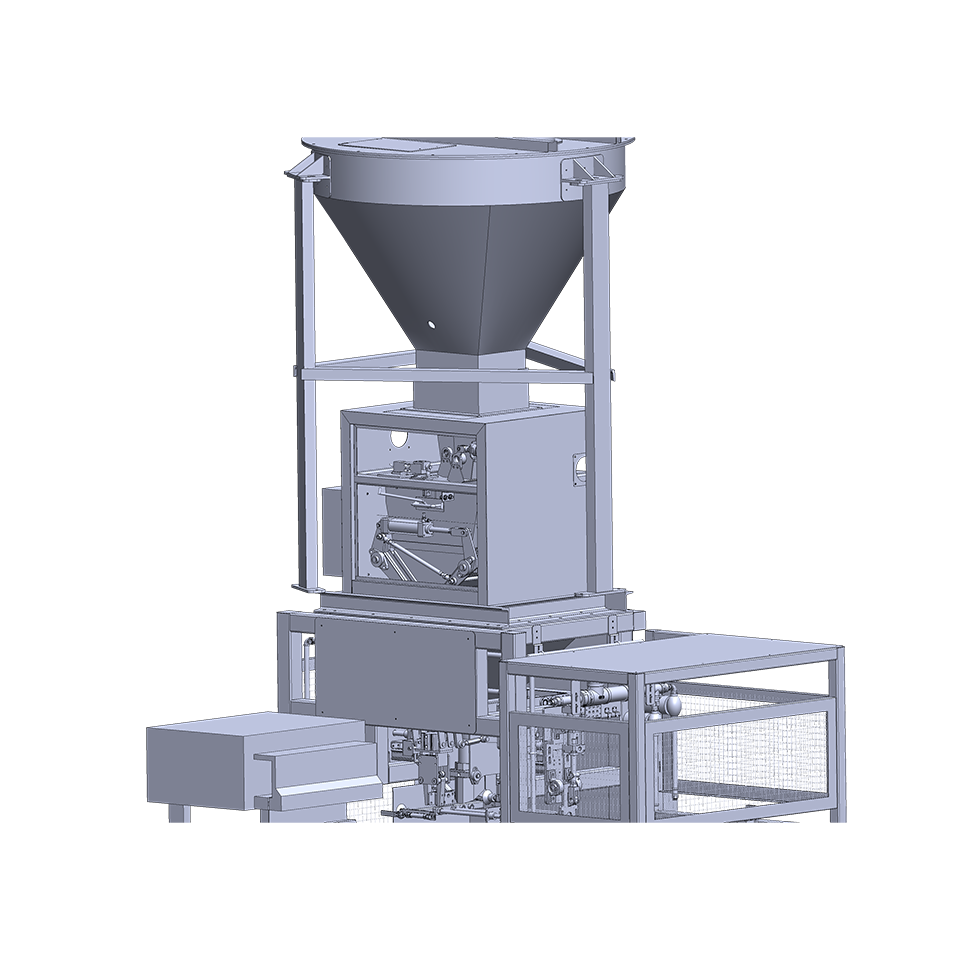

Performance validated design and construction The JOYU automatic bag feeding system is designed for strict work in critical applications, meeting the needs of multiple types of automatic bag feeding and reducing labor. Each JOYU automatic bag feeding system has a specific design for different working conditions, bag shapes, and linkage equipment, which is different from the design of commonly used automatic bag feeding systems in the market. The modular and integrated structure and control infrastructure of JOYU enable all automation and control functions to be centralized in a single PLC control unit. This integrated construction and control infrastructure of JOYU lays the foundation for reducing total costs; Stable operation also improves smooth performance and the accuracy of production data shared by the entire enterprise.

下载文件

功能与集成

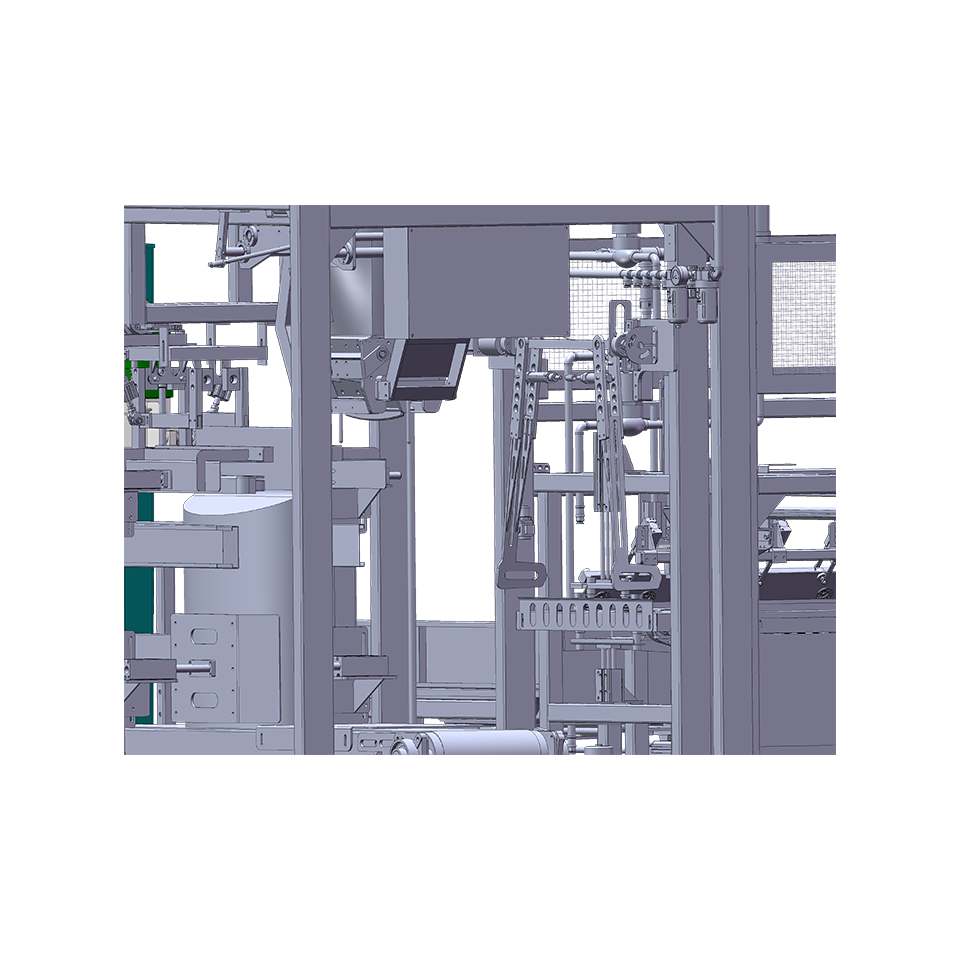

Modular split structure

The JOYU automatic bag feeding system is designed for rigorous work in critical applications. Each JOYU automatic bag feeding system, regardless of its material characteristics or specification requirements, adopts a modular split structure, which is different from ordinary automatic bag feeding designs on the market. Modular split structure provides excellent flexibility, adaptability, and accuracy to meet the needs of automatic packaging under different working conditions and environments

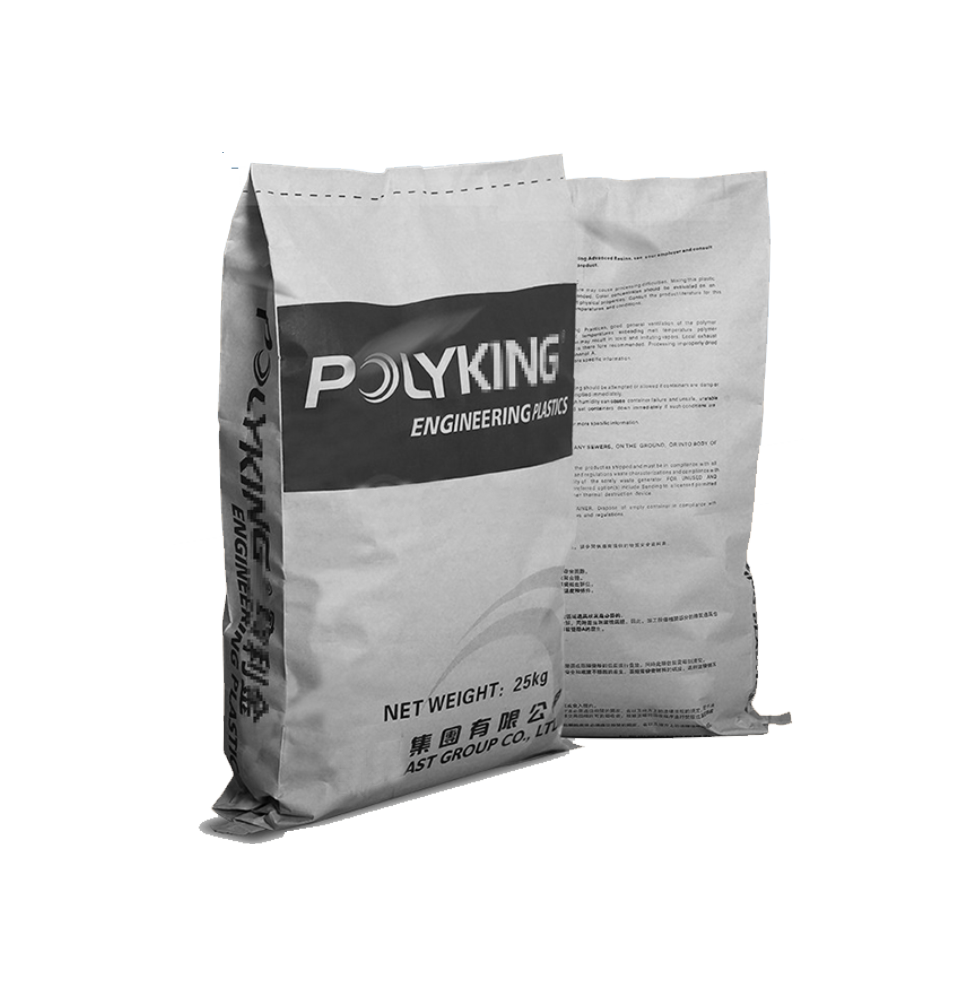

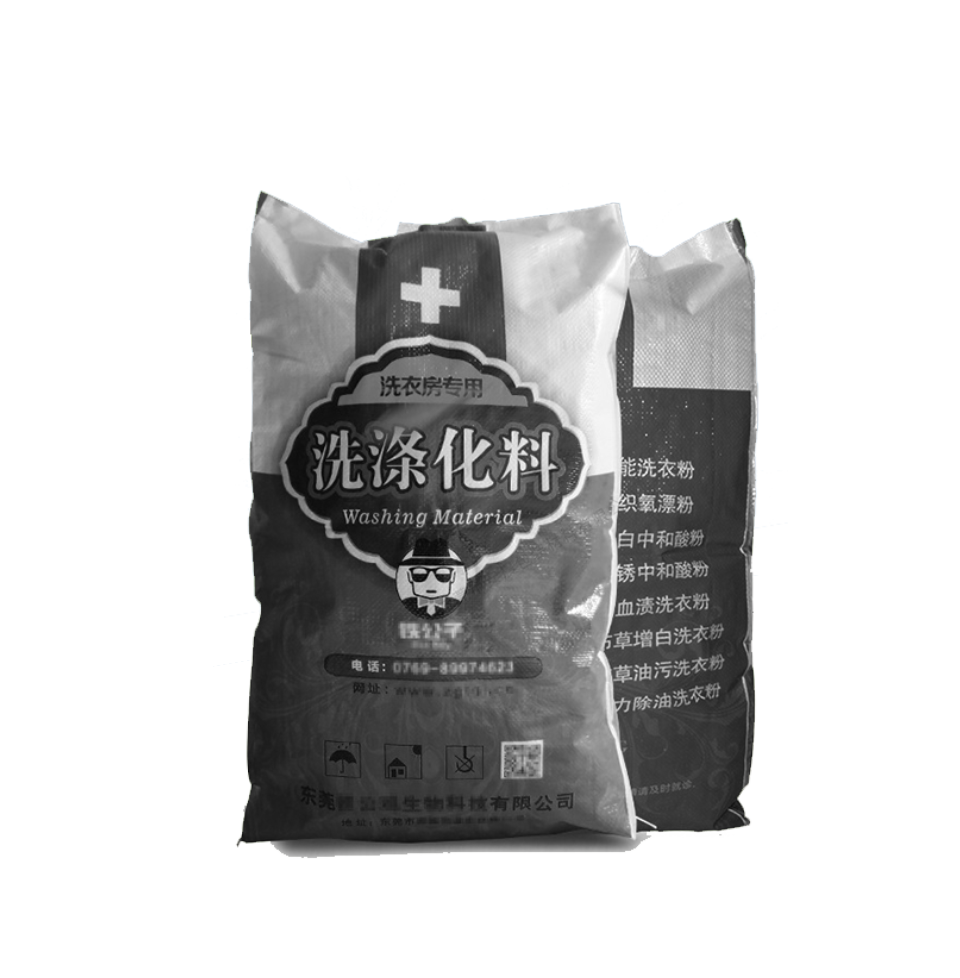

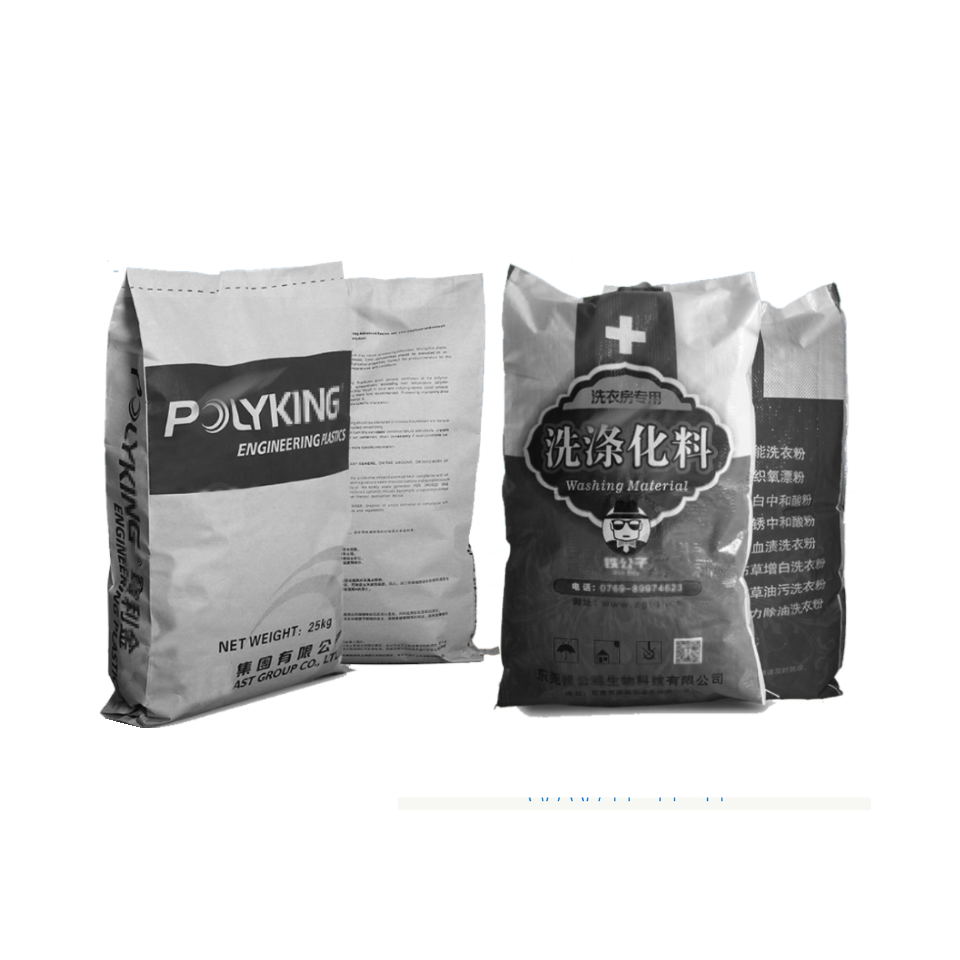

Adapt to a variety of bag equipment options

Ordinary plastic woven bags, film covered composite woven bags, Kraft paper woven bags, PVC bags and other packaging bags with different materials and appearances can be applied to different types of automatic bag feeding systems according to needs.

Multiple functions can be customized

The JOYU automatic bag feeding system can be configured with bag warehouses of different sizes, heat sealing equipment of different temperature ranges, sewing equipment, folding equipment, inkjet equipment, etc., to meet the requirements of different packaging materials for high-quality sealing processes.

Automatic bagging function

The JOYU automatic bag feeding system combines various full bag loading methods such as pneumatic and servo systems to meet the needs of packaging bags of different materials, sizes, and shapes, ensuring the repeatability of the packaging bags and ensuring the success rate of bag clamping, safety, and reliability.

Rich sealing functions

The JOYU automatic bag feeding system subdivides the packaging bag material and its quality and moisture-proof characteristics, meeting the sealing requirements of different particles, powders, and sheets.

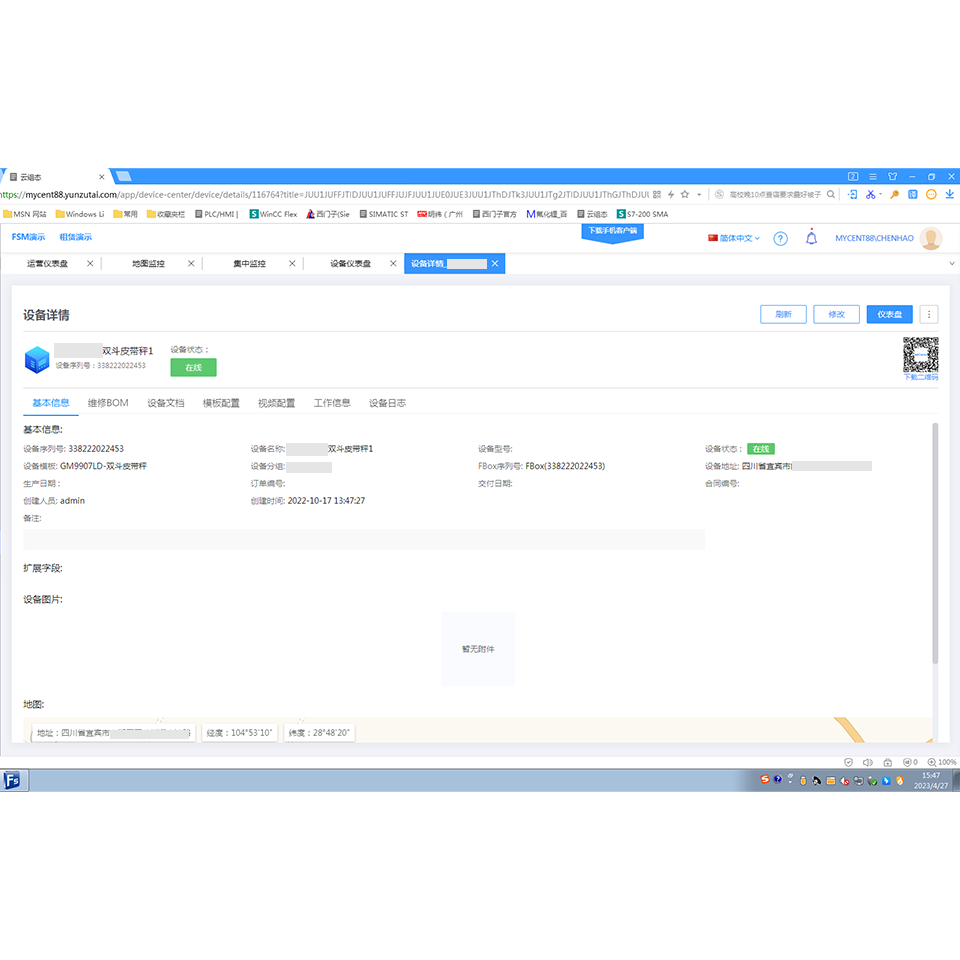

Advanced control system and security

Using Siemens PLC as the central control unit and integrated construction and servo control foundation, precise control of each action is achieved; The weighing sensors and analyzers use international first tier brands to ensure efficient transmission of weight signals; The safety switch is designed in the conventional operating area of the equipment, allowing operators to quickly intervene when needed, ensuring production safety. The safety factor is the fundamental goal of the highly engineered, integrated structure, and control facilities of the JOYU automatic bag feeding system.

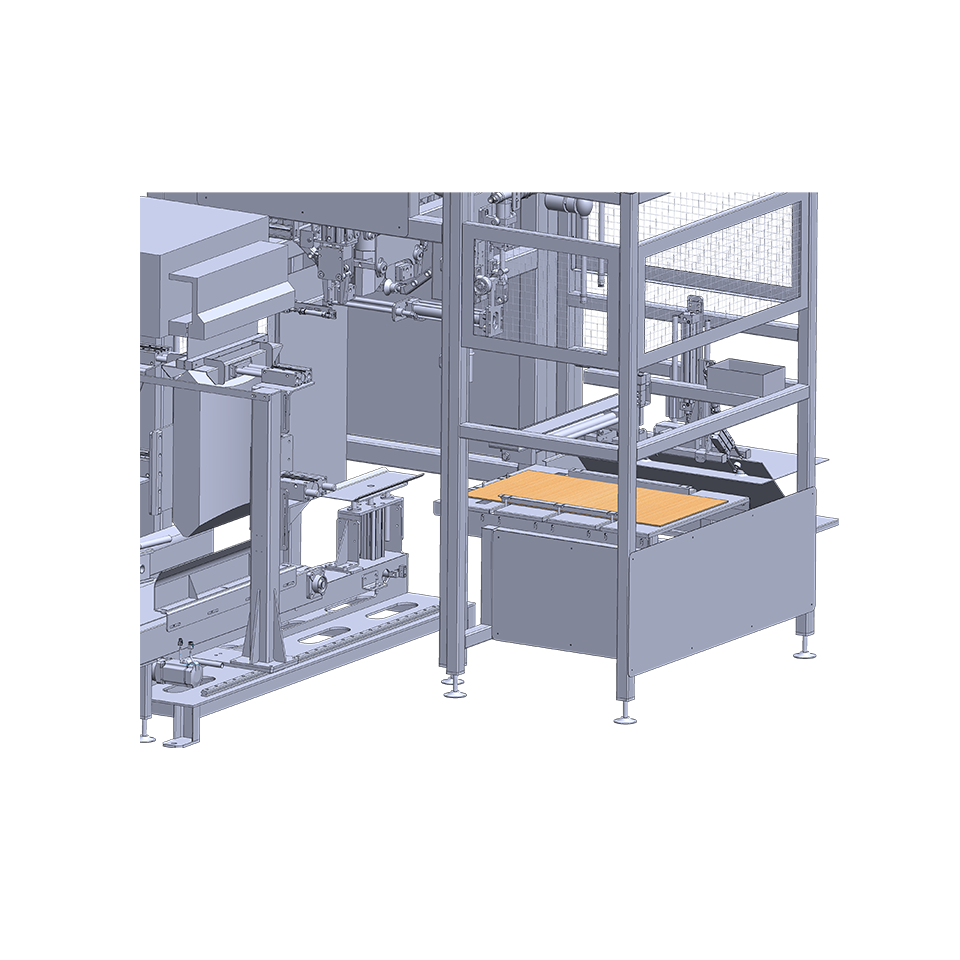

Multi style bag library

Meet the diverse production needs of packaging bags in the market, and achieve production needs of different specifications, such as 10kg, 15kg, 20kg, 25kg, 40kg, 50kg, etc

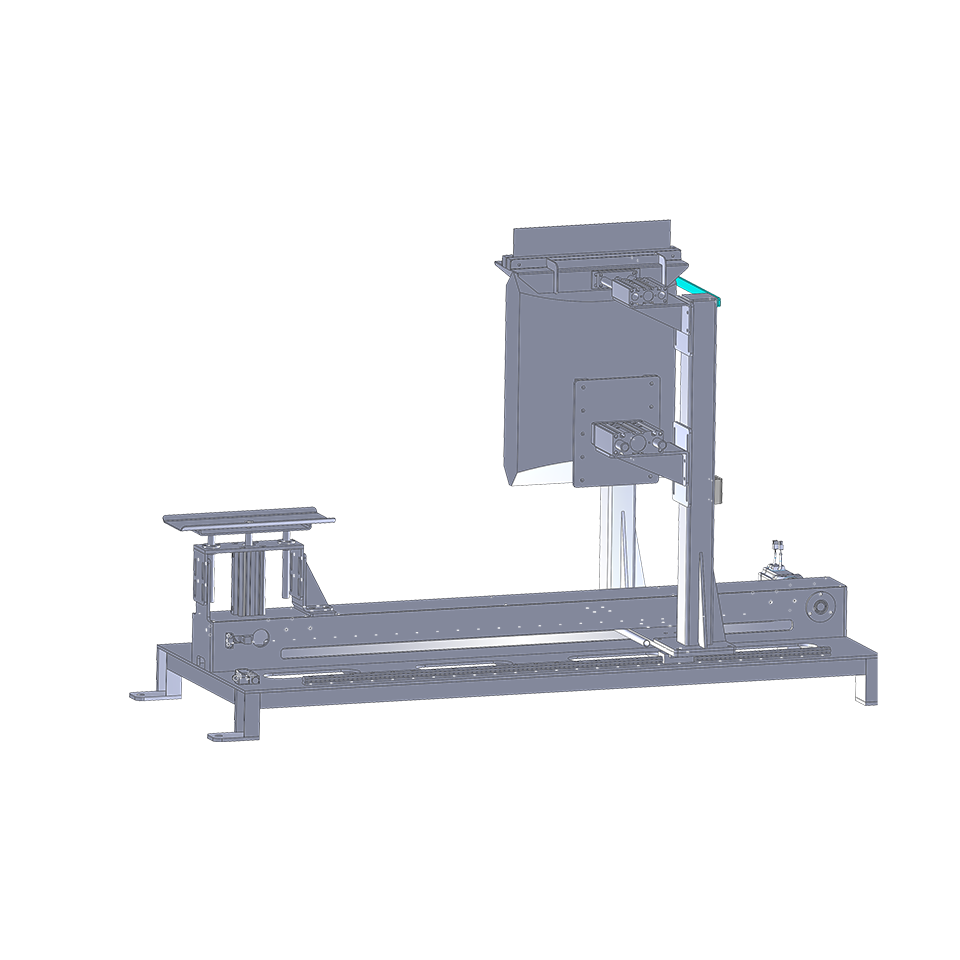

Bagging manipulator

Effectively and accurately feed the packaging bag into the discharge port of the measuring scale in accordance with ergonomics, to meet the needs of the bag feeding process.

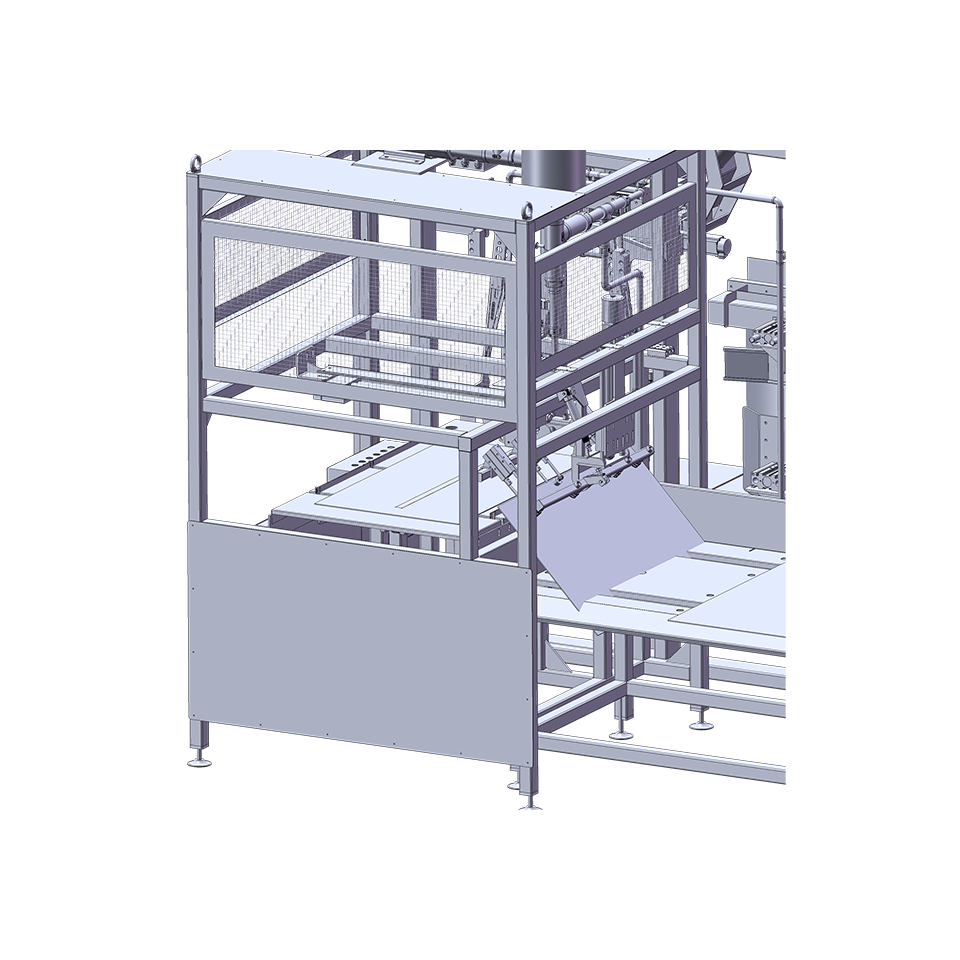

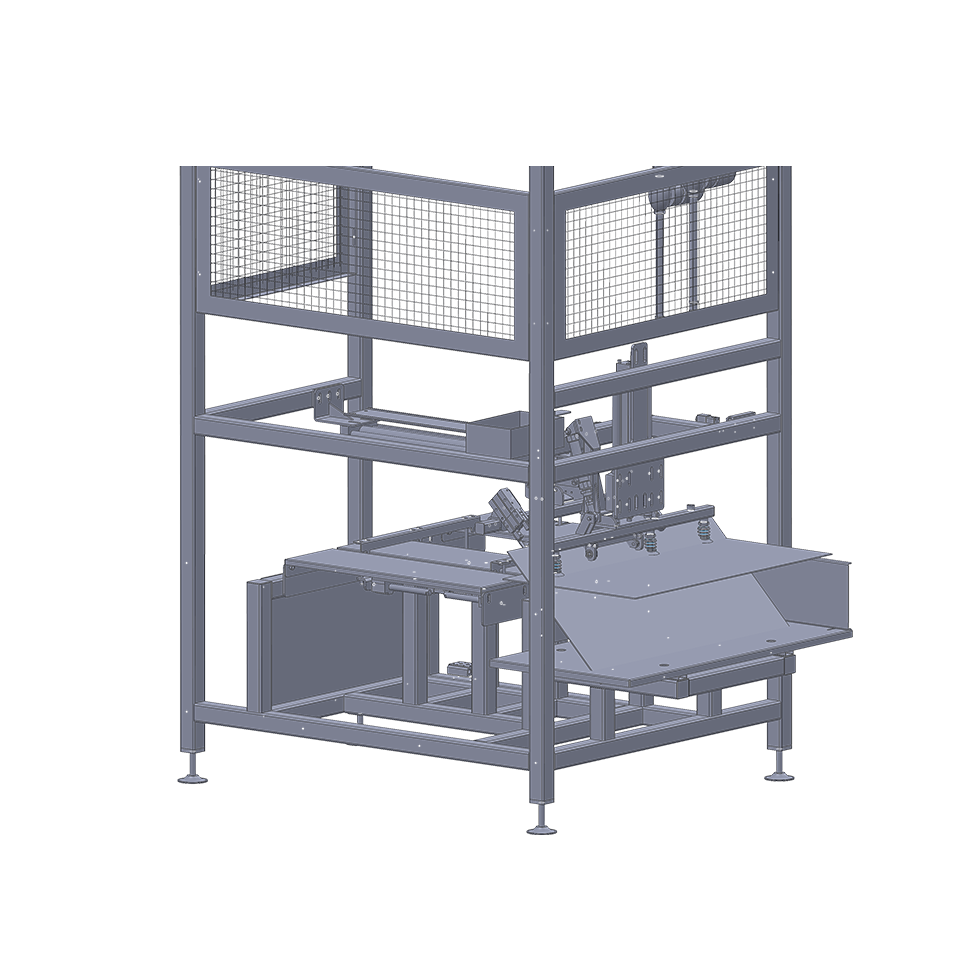

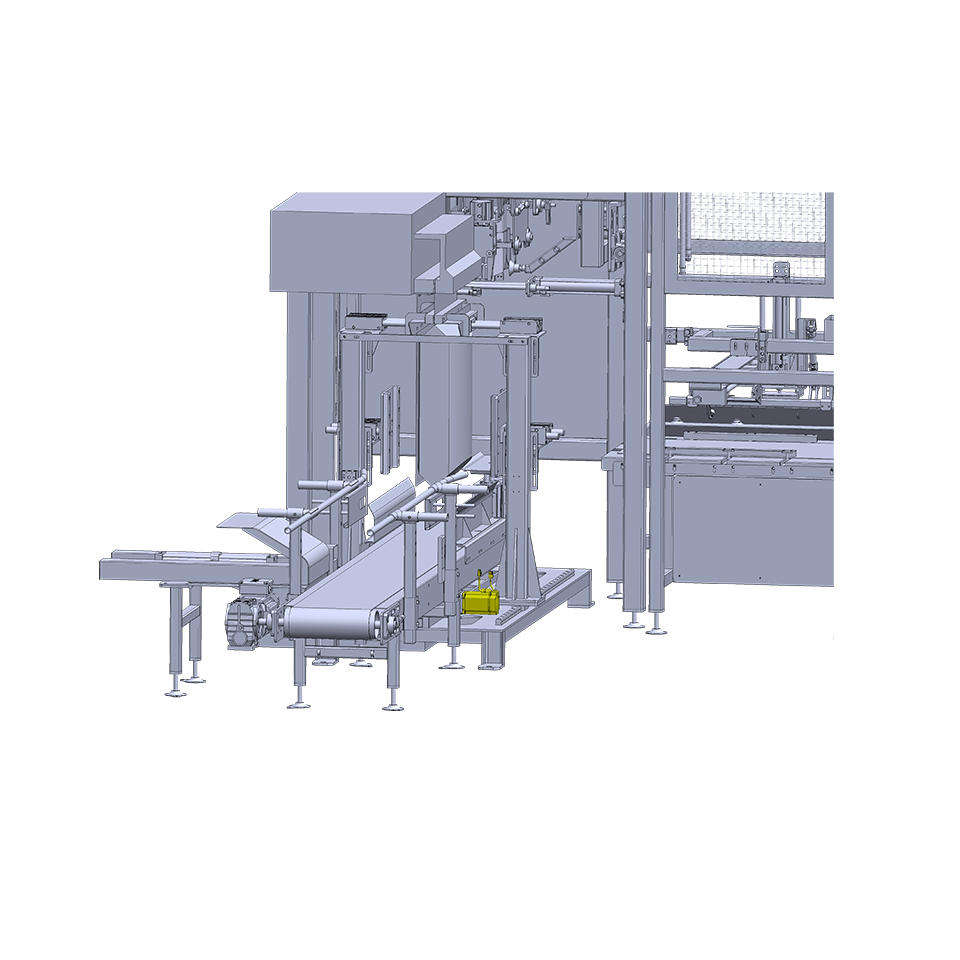

Bag moving robot

Based on the characteristics of packaging materials weighing 25kg and below, combined with the needs of production capacity, scientifically and reasonably complete the transportation process of packaging bags.

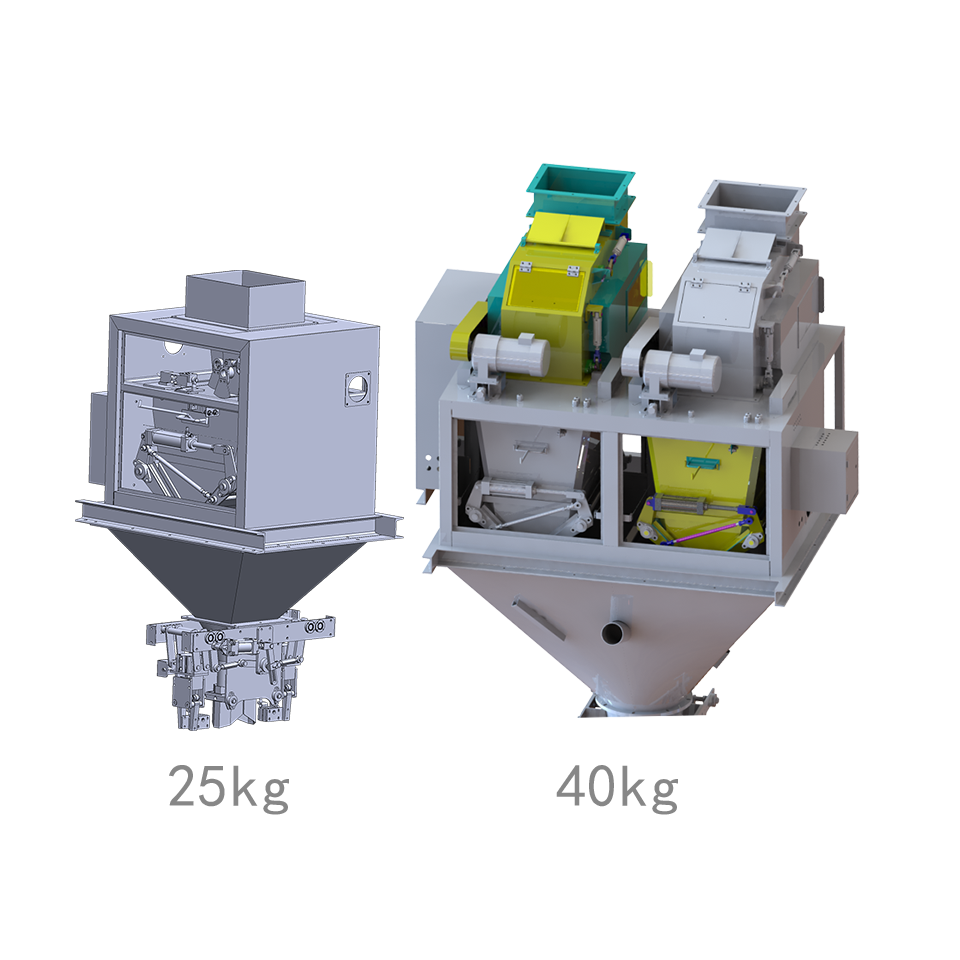

High precision weighing and measuring scales

Selecting appropriate feeding mechanisms for measuring scales for different materials can ensure better weighing accuracy

其他功能集成

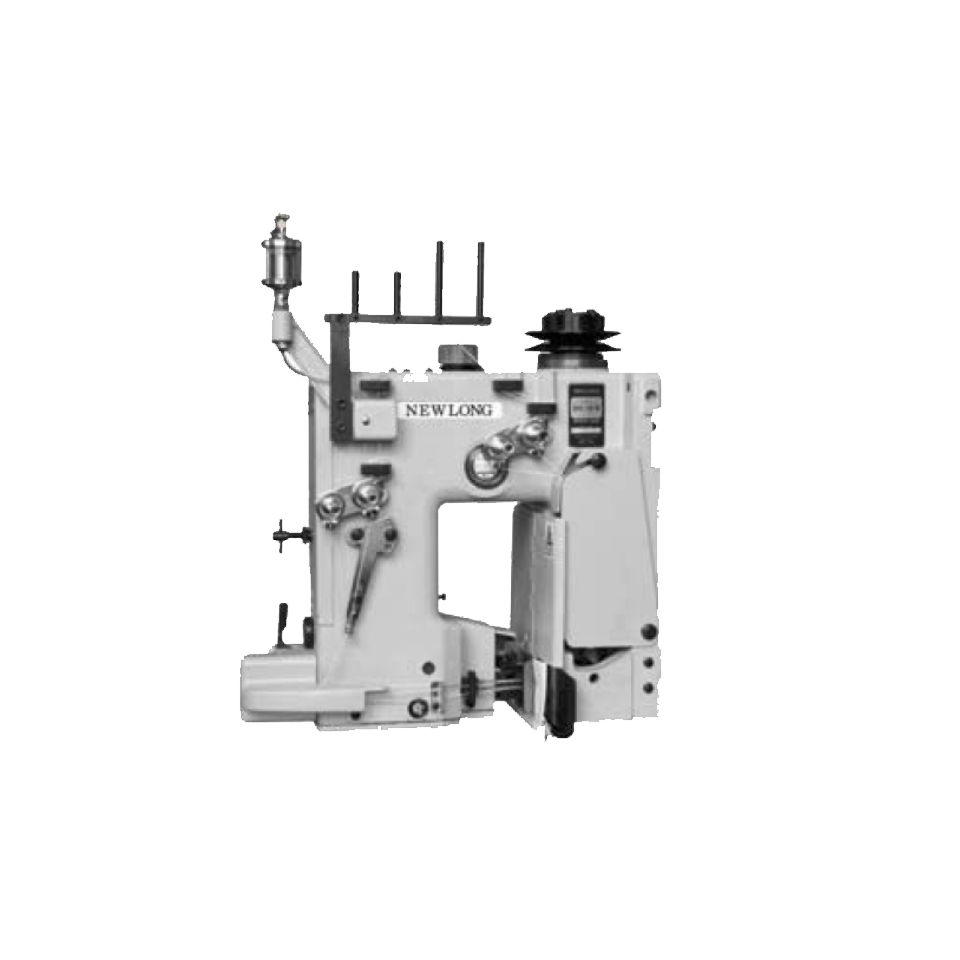

Thread sewing sealing

Adopting Japanese NEWLONG and other top tier industrial sewing machines to achieve effective sewing of packaging bags,
Heat sealing

According to the hot melt temperature of the packaging bag material, the temperature is set at the optimal point, which not only does not melt the bag body, but also achieves the function of sealing the bag mouth, improving the quality of the packaging material.

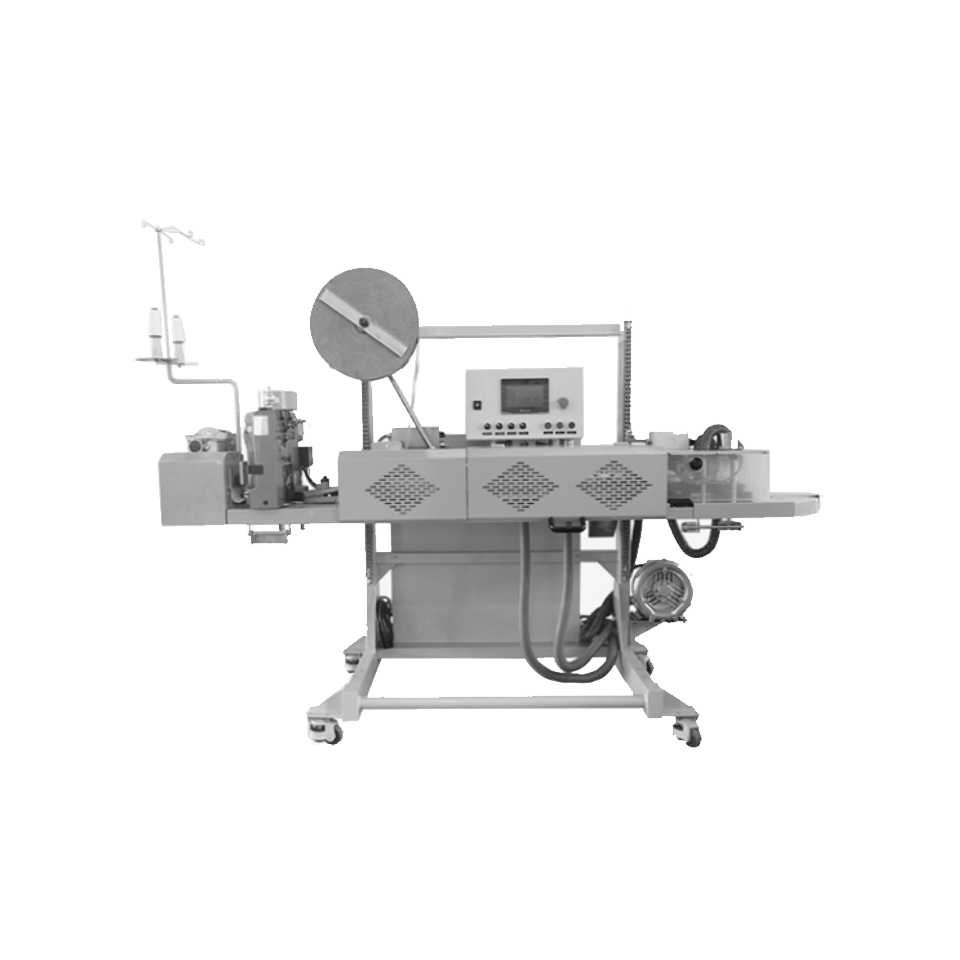

Hot sealing paper strip sealing after thread sewing

Suitable for enterprises with higher standards for moisture resistance. After completing thread sewing, the addition of adhesive fusion paper strip heat sealing process ensures better sealing and longer shelf life.

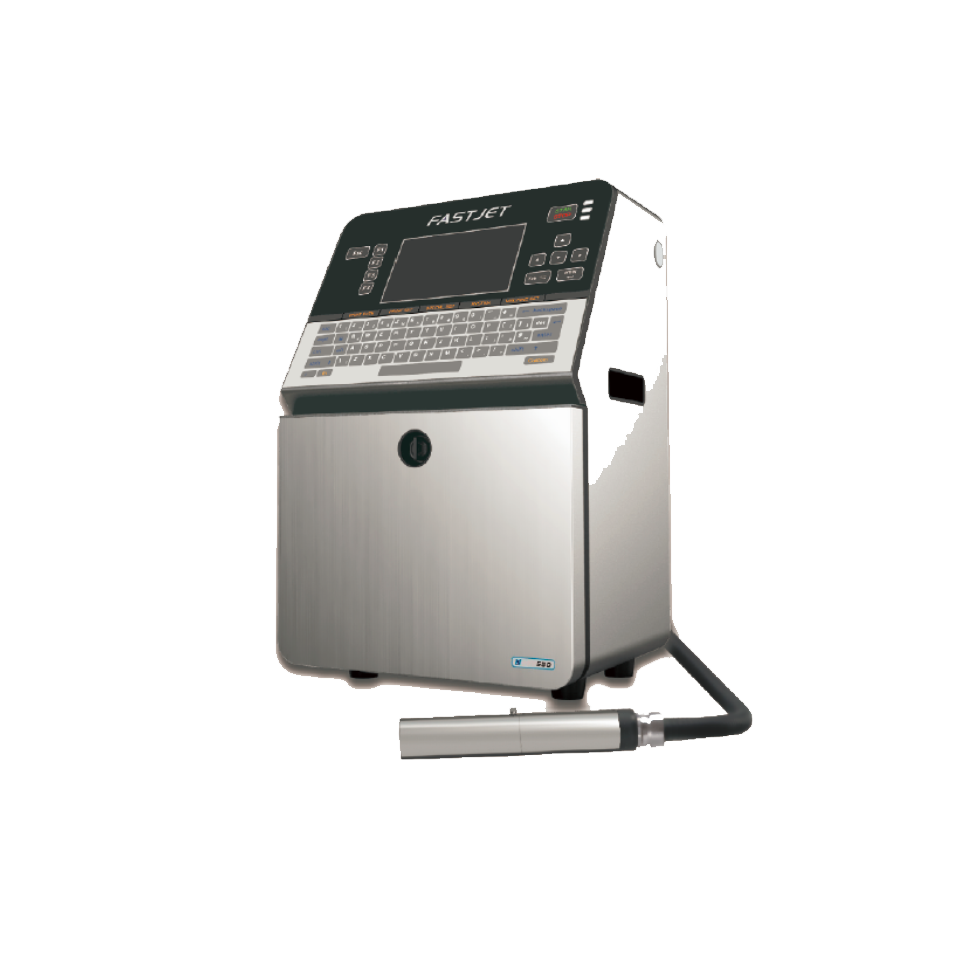

Folding and printing functions are optional

Suitable for packaging bags with folding process; The inkjet function allows customers to choose the appropriate position on the surface of the packaging bag for automatic printing of the required content.

Automatic bag packing system
