Metering Measuring scale

Measuring scale

Weighing and batching scales based on high force sensitivity Enrich and adapt to the mechanical appearance design of different structures under different working conditions, meet the precise needs of project owners on a larger scale, and combine with the control system to perfectly control the ingredient accuracy, achieving smooth process flow. JOYU measuring scales are equipped with three point or single point forces as needed, which are scientifically validated and combined with better operating experience, designed specifically for automated operations in key applications of incremental measurement. Each JOYU measuring scale, regardless of its capacity, exhaust and isolation requirements, or the speed of calibration, can meet the requirements of each project. It can adopt a complete set of professional designs that meet the production capacity design, fast discharge, and better dust collection effect according to the needs of the process section.

下载文件

功能与集成

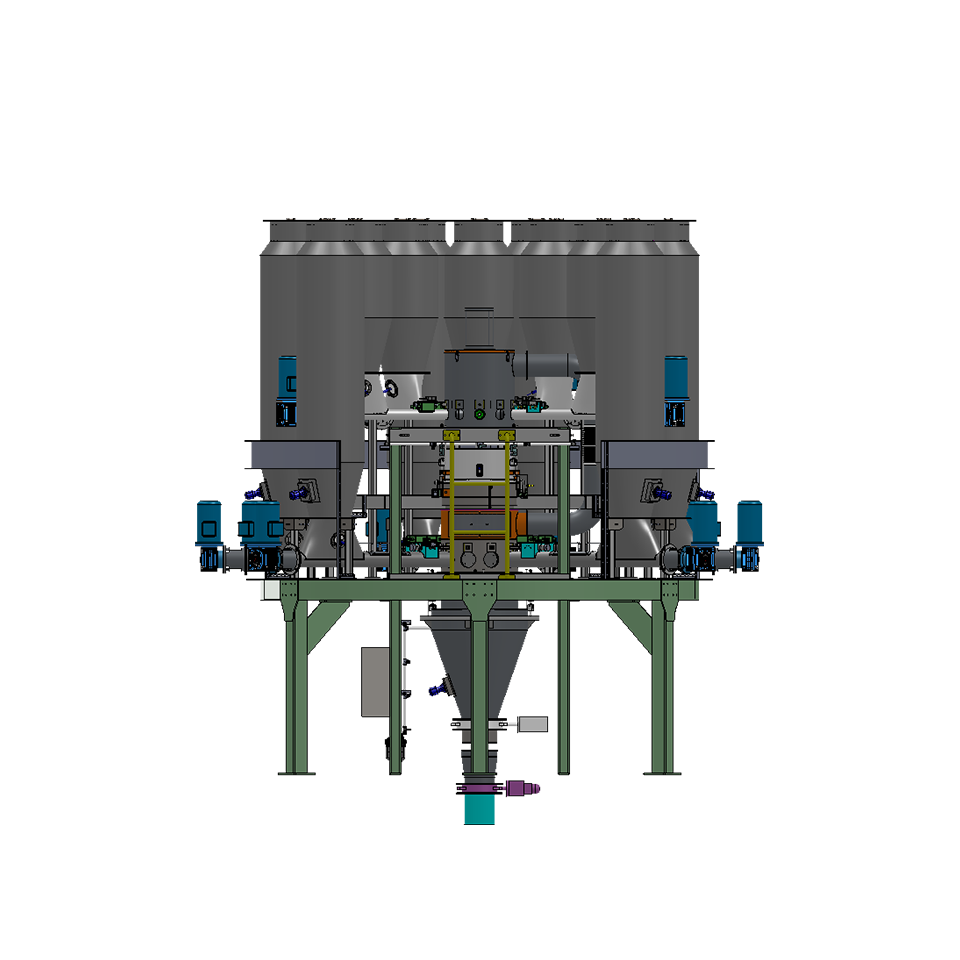

Rich product design

JOYU weighing scales have a rich design of external scales that meet the requirements for small, auxiliary, and large material batching. The measuring range ranges from 5000g for small materials to 2000kg for large or bulk materials, all of which can meet production capacity requirements

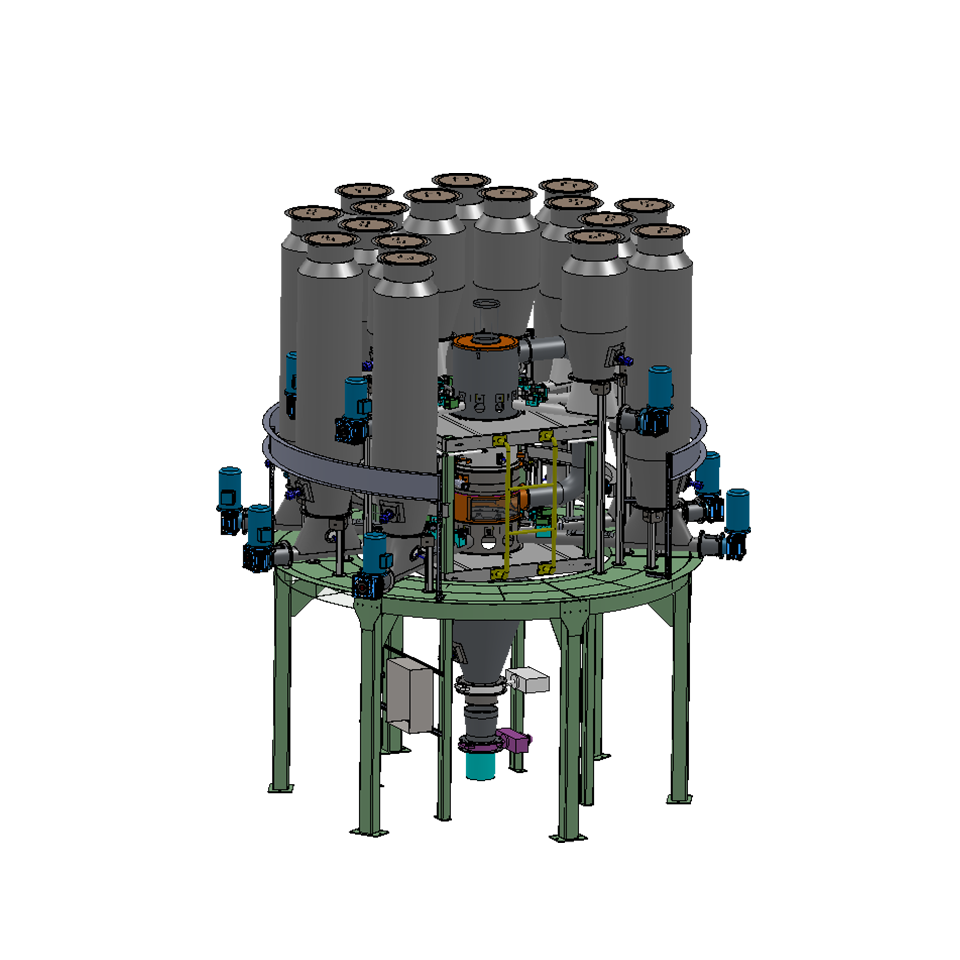

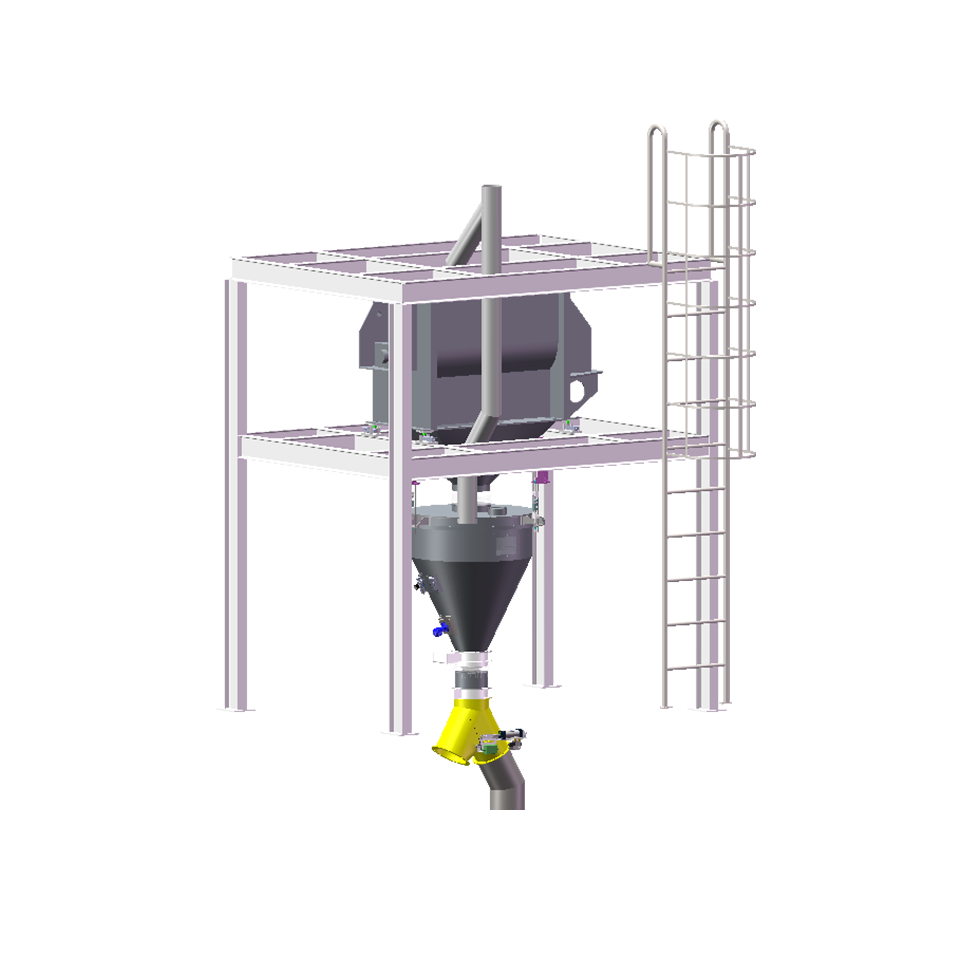

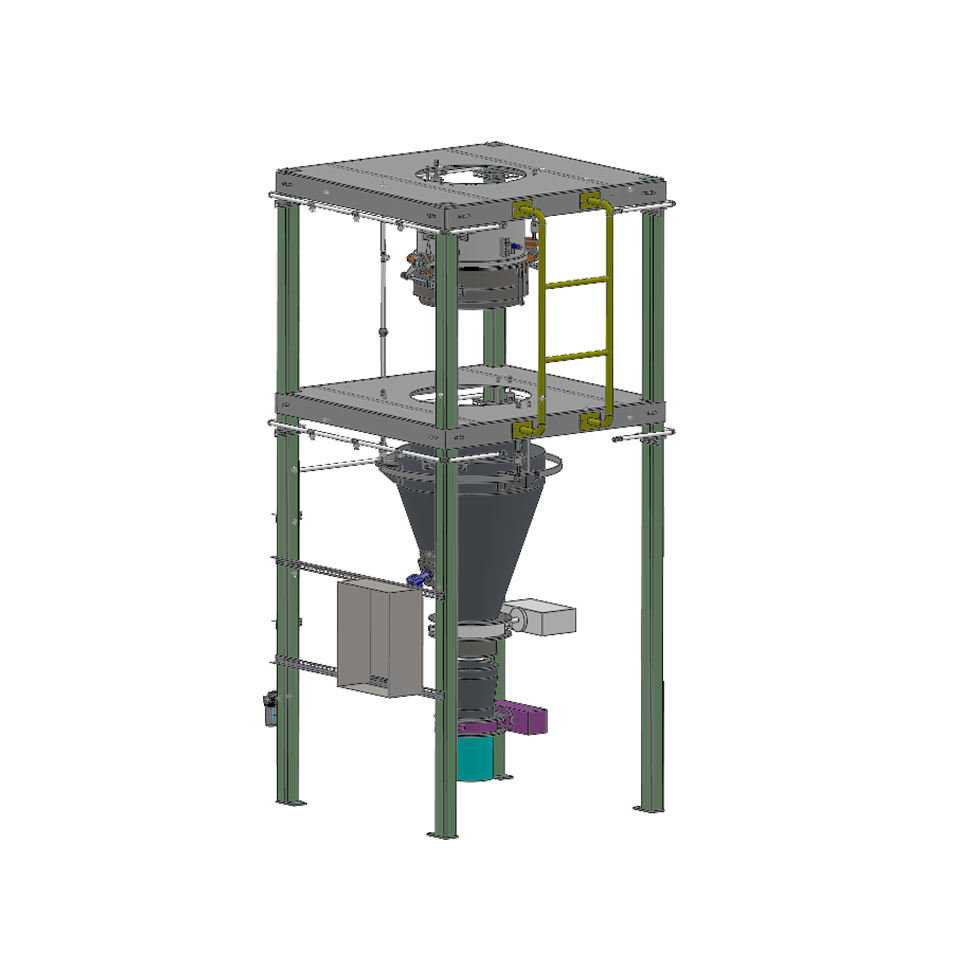

Stacked ingredient scale

Patent No. ZL 2018 2 1119507.9 JOYU stacked batching scale saves project space and costs, meets the production requirements of the bottom mixer with flexible feeding methods, conforms to the advanced concept of compact design, and improves the accuracy of material batching in limited space

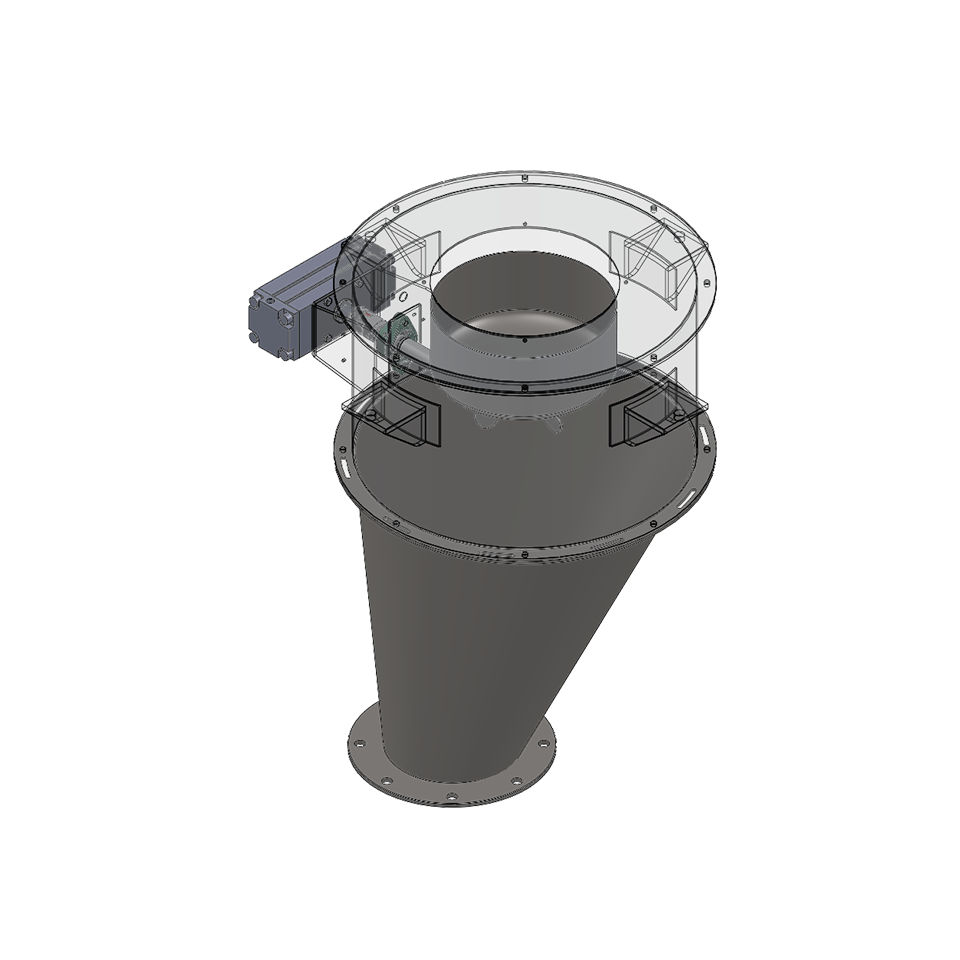

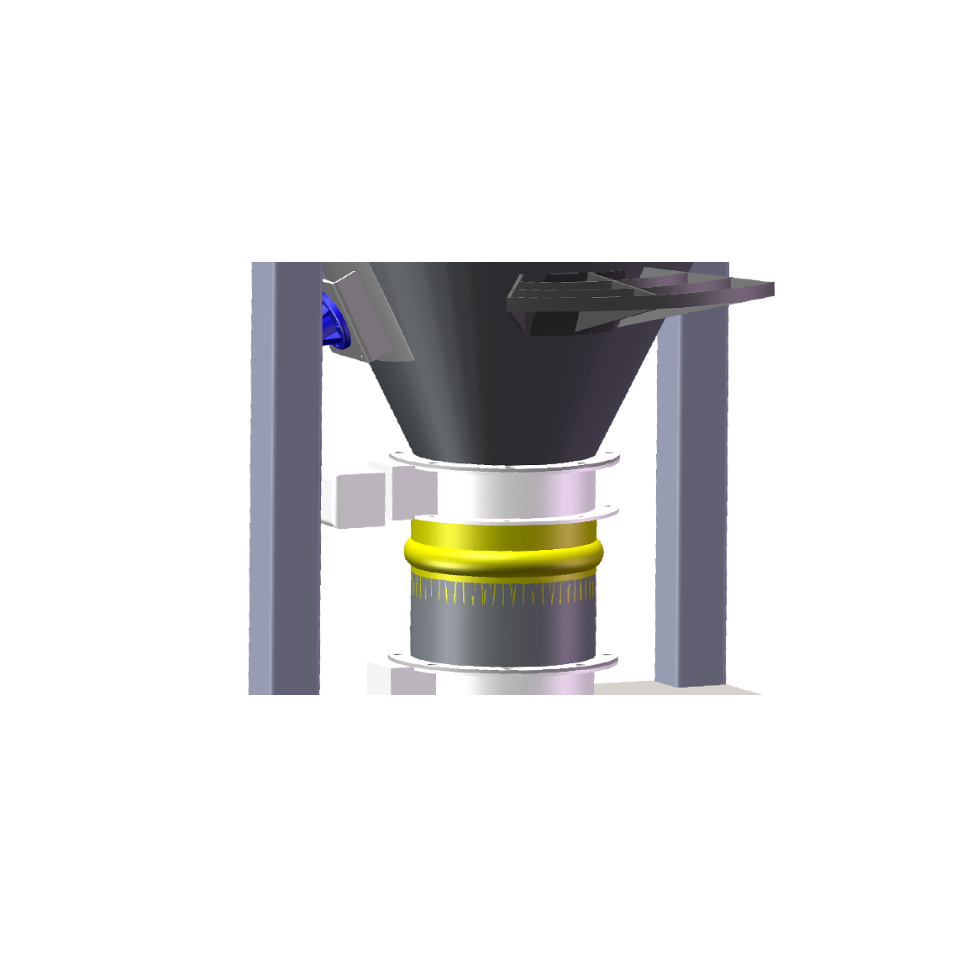

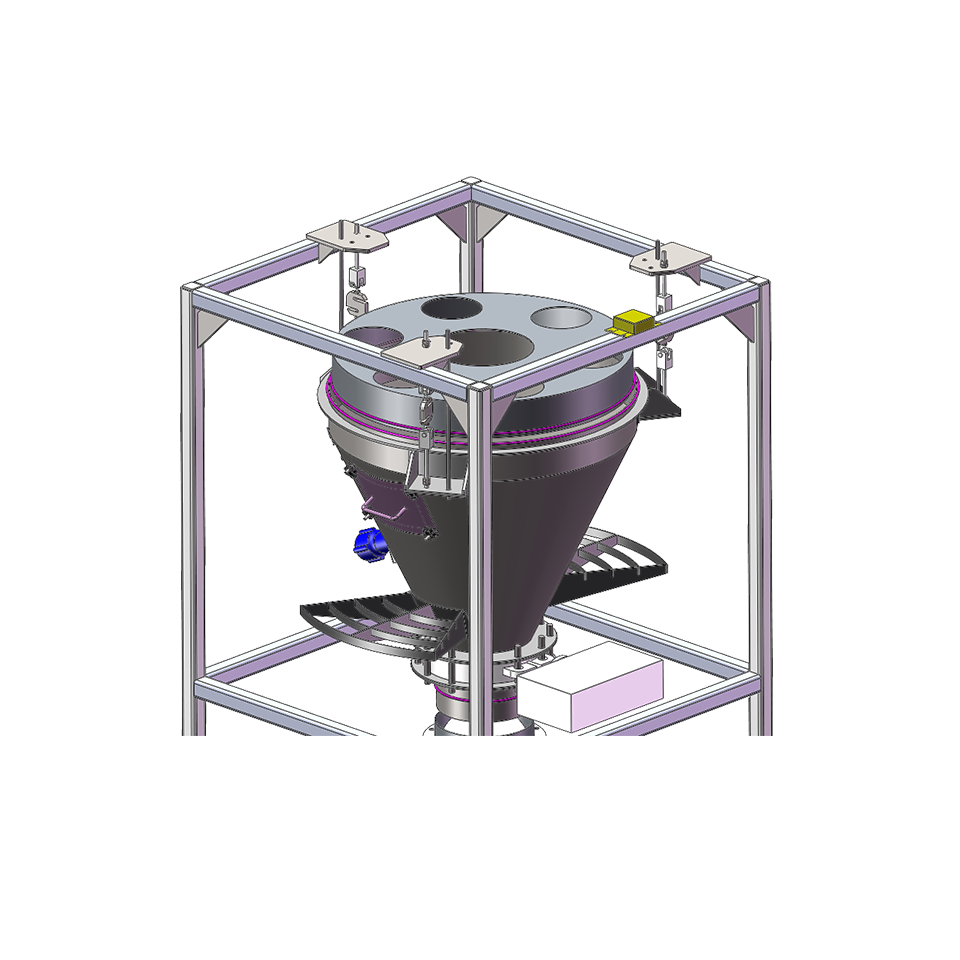

Unique application of isolation valves

According to the process of the next section, JOYU measuring scale is designed with an air isolation valve to prevent the airflow at the bottom from affecting the normal operation of the measuring scale, improve the efficiency and accuracy of the measuring scale, and improve the stability of the equipment

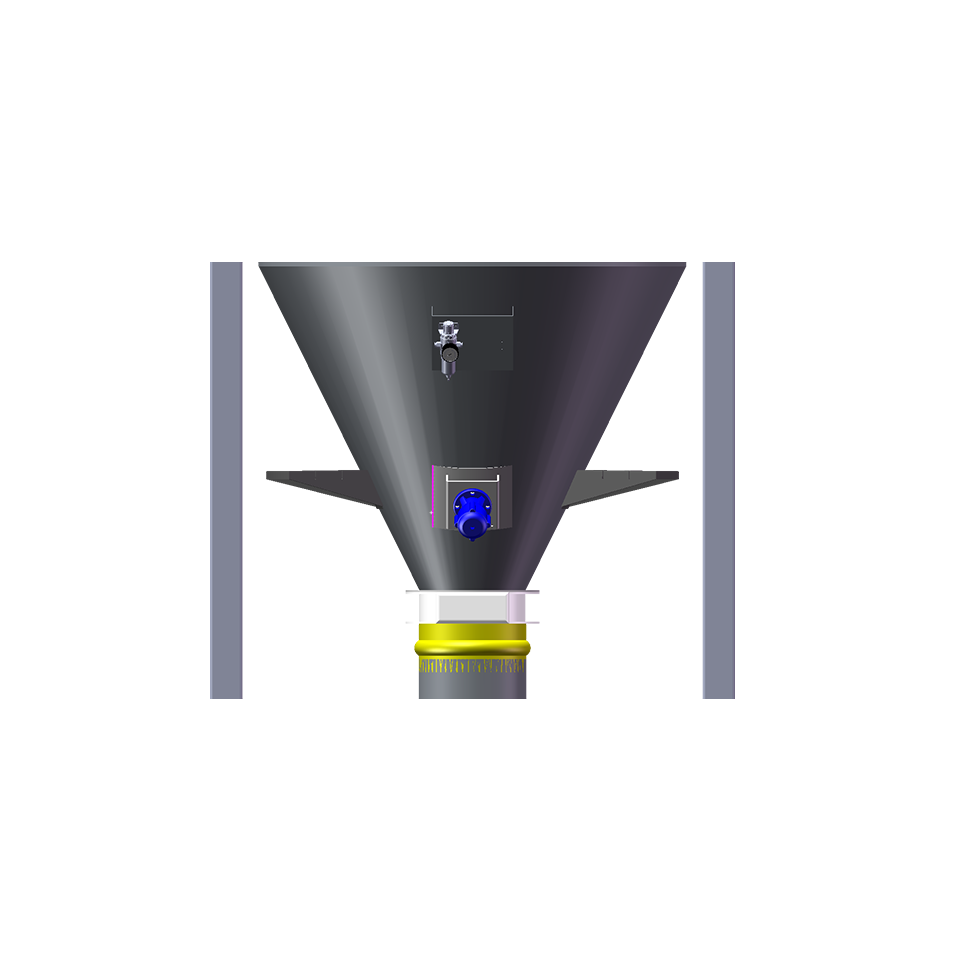

No residue in discharge

Air vibrators are widely used in JOYU weighing scales to ensure that wall mounted materials can detach from the scale body and quickly discharge, quickly reaching the zero zone value of the scale and starting the next batch of automatic batching. The design of no residue discharge has received support and promotion from project owners

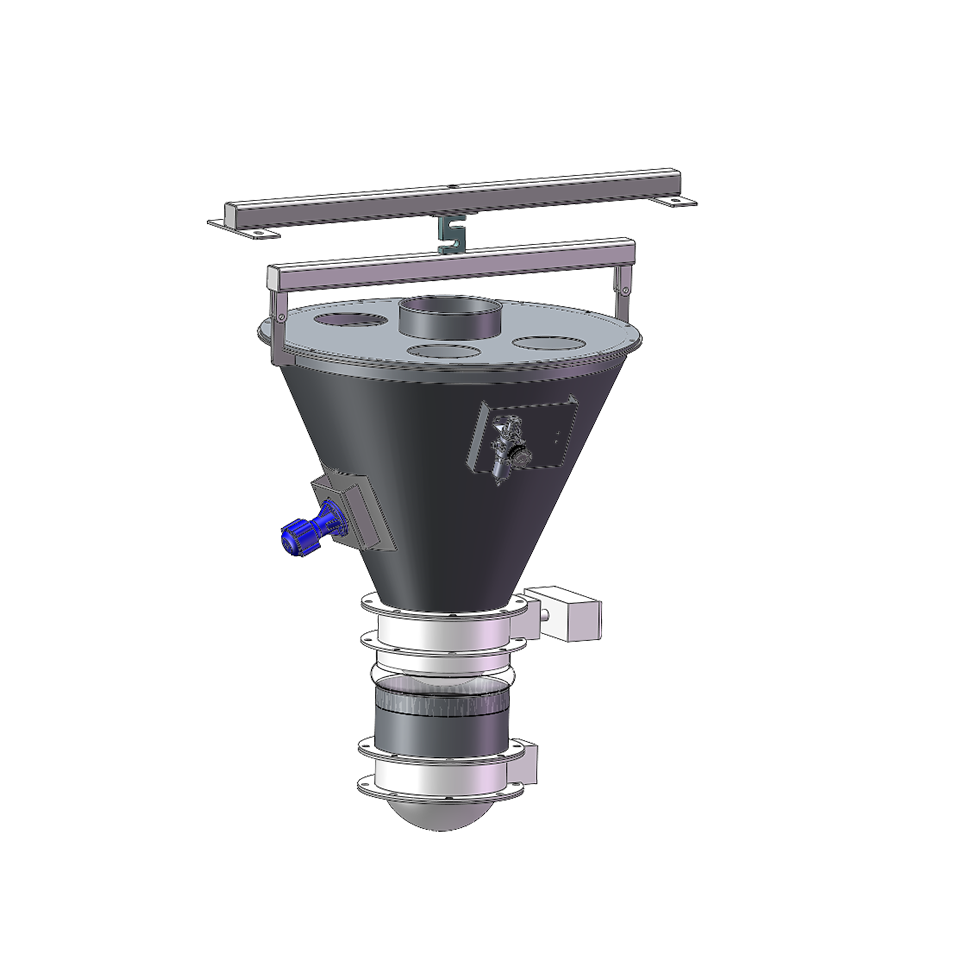

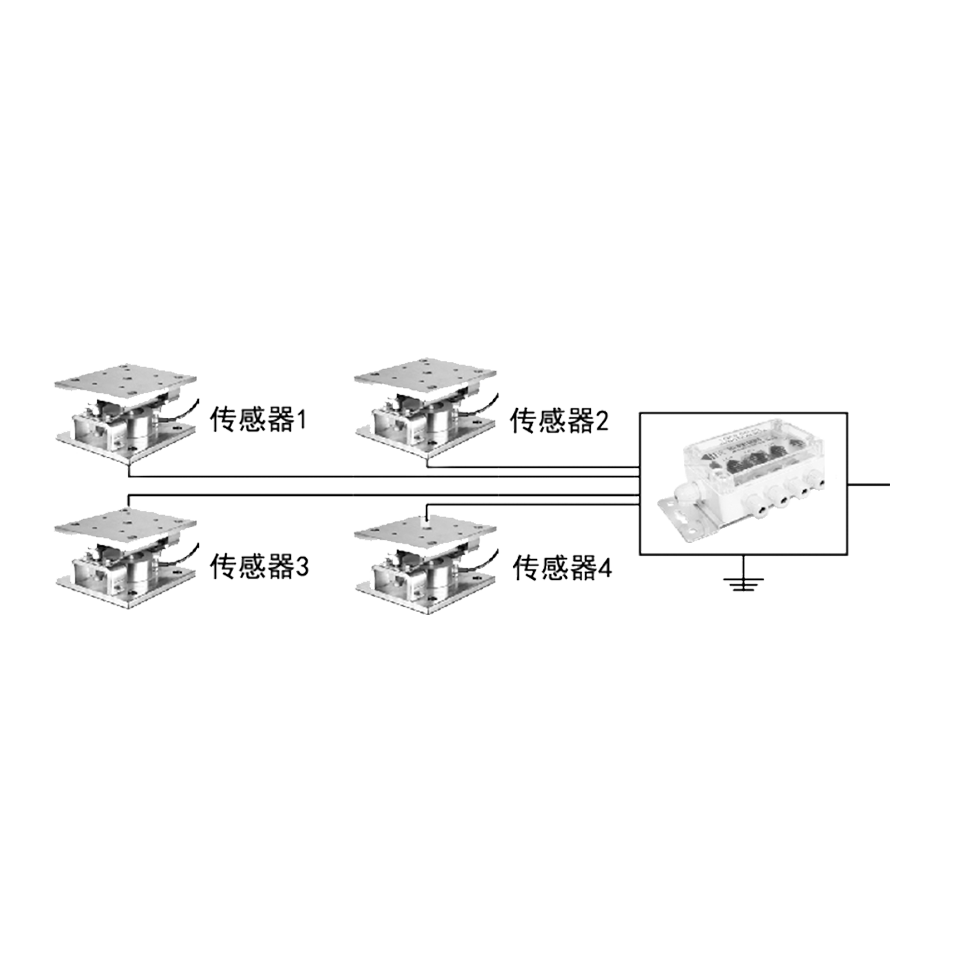

Higher precision angle difference adjustment

JOYU weighing scales are equipped with angle difference sensing modules, providing convenient wiring, stability, and precise force sensing for sensors. The subtle voltage changes in sensor force can be more accurately adjusted。

Dust collection design

The measuring scale has a specialized dust collection and exhaust design, which centrally disposes of the dust falling into the scale hopper to ensure that the environmental PM2.5 meets the standard; Discharge the generated air pressure and balance the operation of the entire system.
