Metering High speed mixer feeding system

High speed mixer feeding system

Automation Design for Improving the Precision and Efficiency of Automatic Feeding of High Mixing Machines An automated design that integrates various small materials and additives, greatly reducing the amount of manual feeding and addressing the need for automatic feeding without being limited by space. The JOYU high-speed mixer automatic feeding system is designed specifically for the automation of polymer new materials in critical applications. Each JOYU high-speed mixer automatic feeding system, regardless of its powder, sheet or solid, oil weighing, or cross floor distance transportation, can submit automatic feeding solutions and complete equipment for clean working conditions and better dust collection effect according to different space and energy requirements

下载文件

功能与集成

Design that is not limited by space

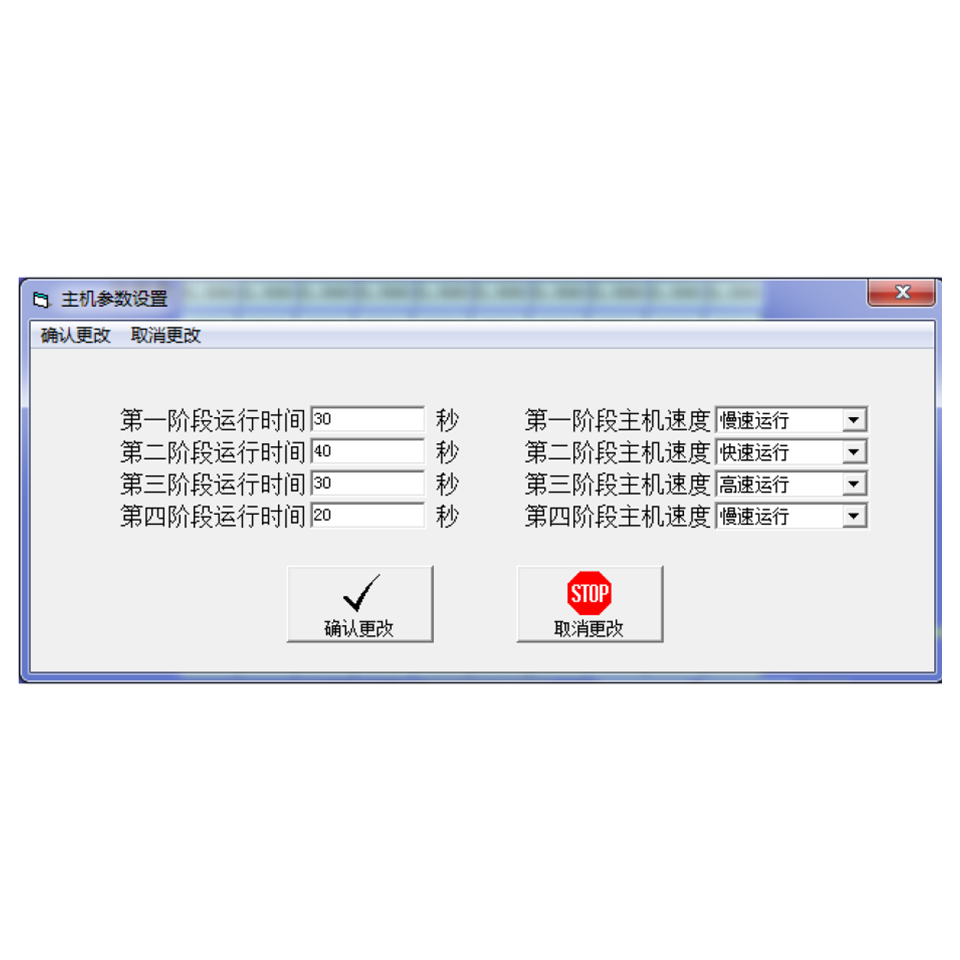

JOYU high-speed mixer feeding system can cooperate with manual feeding and automatic unloading of tons of raw materials to meet the automatic feeding needs of different capacity high-speed mixers. Different temperature ranges are distinguished to adjust different speeds and mixing times, achieving better mixing effects. For each JOYU high-speed mixer feeding system, regardless of the spatial layout, we can provide project owners with solutions that meet the on-site application needs.

Single point dust removal system for raw material feeding

To meet the needs of feeding and dust treatment for 25kg small bags of raw materials, the pulse back blowing module effectively ensures the removal of dust and the return of adsorbed fine raw materials to the silo, without any waste of raw materials. The design of these re falling silos, as well as more environmental factors, are the foundation for the highly intelligent JOYU control system and employee health assurance.

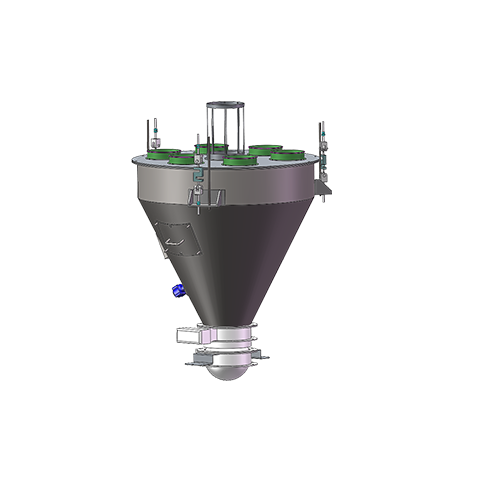

Flexible design of storage silo capacity

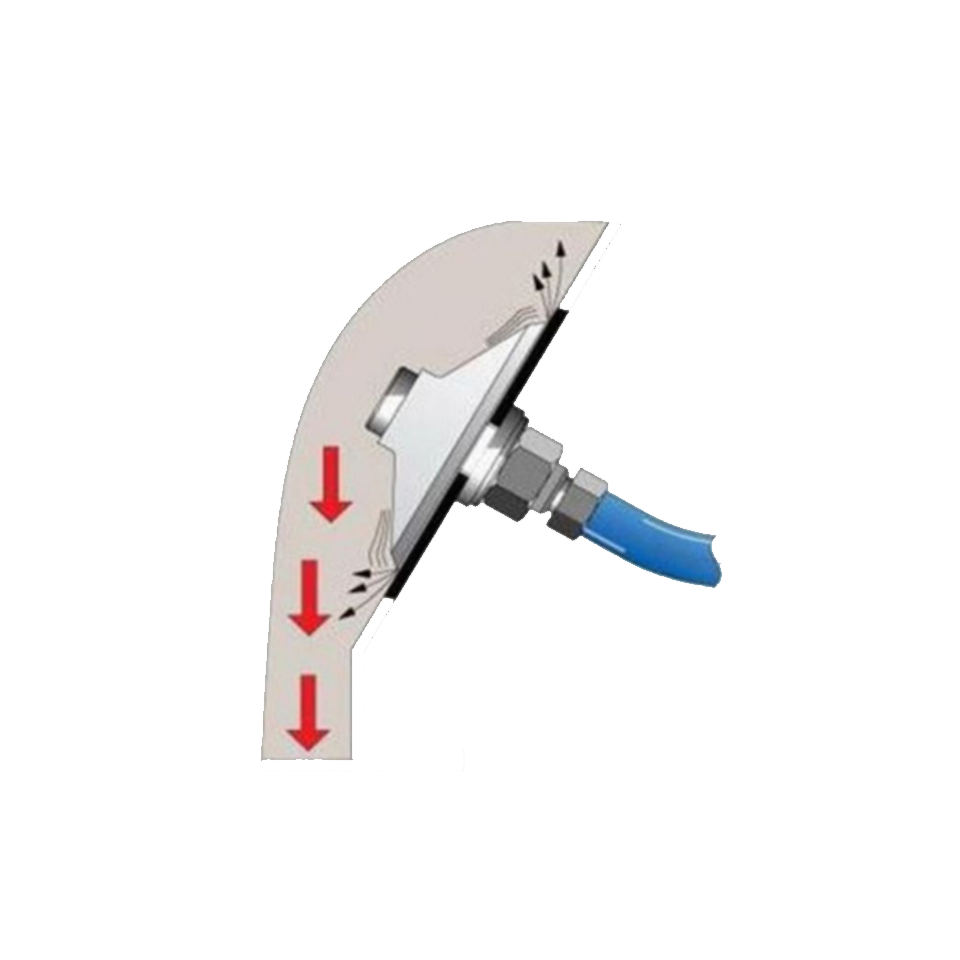

JOYU high-speed mixer feeding system is customized by the project owner based on space and production capacity requirements, carefully calculated and practical, and designed with redundancy to meet production capacity needs. From 30L to 2500L in different capacities, we have a wide range of models to choose from, and are equipped with different design applications such as warehouse pressure reduction technology, anti bridging technology, smooth cutting technology, and screw conveying technology to provide better design solutions。

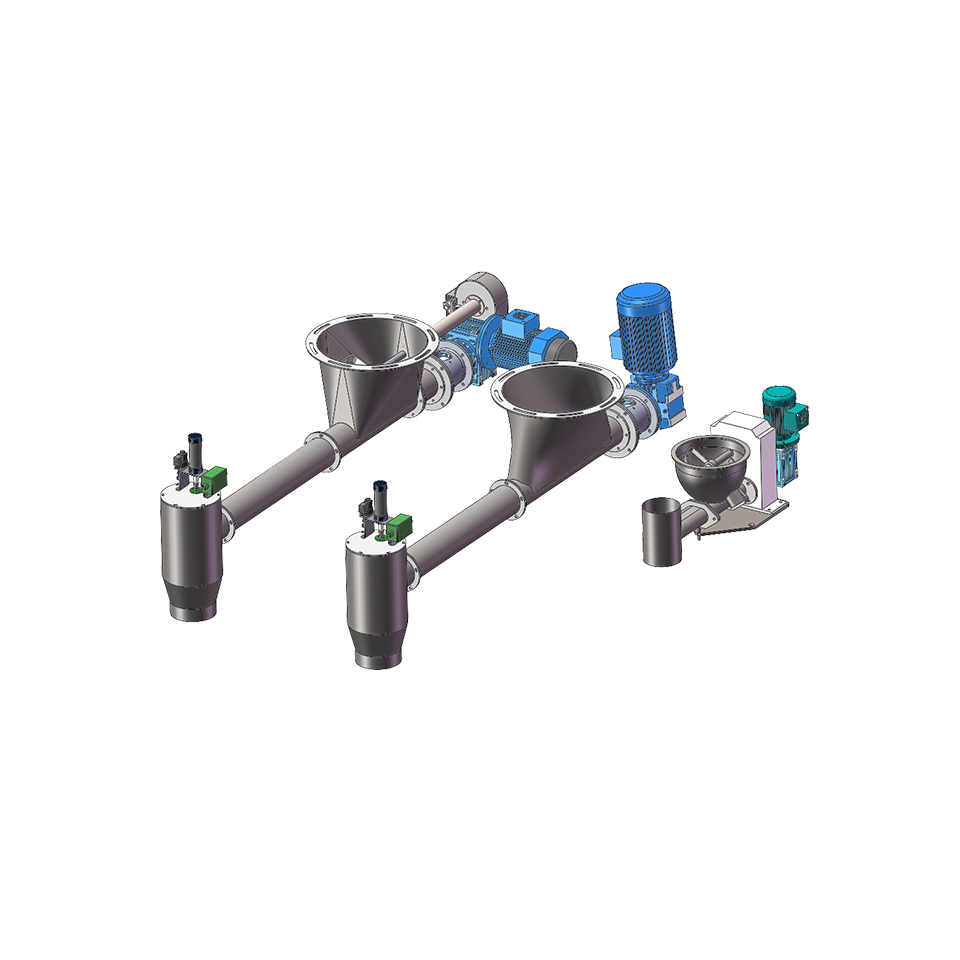

Subtraction measurement to improve feeding accuracy

Patent no：ZL 2020 2 1629400.6 JOYU high-speed mixer feeding system integrates subtraction measurement technology and weight review technology, without the need for manual intervention to automatically complete the measurement and conveying functions, with less dust and accurate measurement.

Incremental measurement with low cost and energy consumption

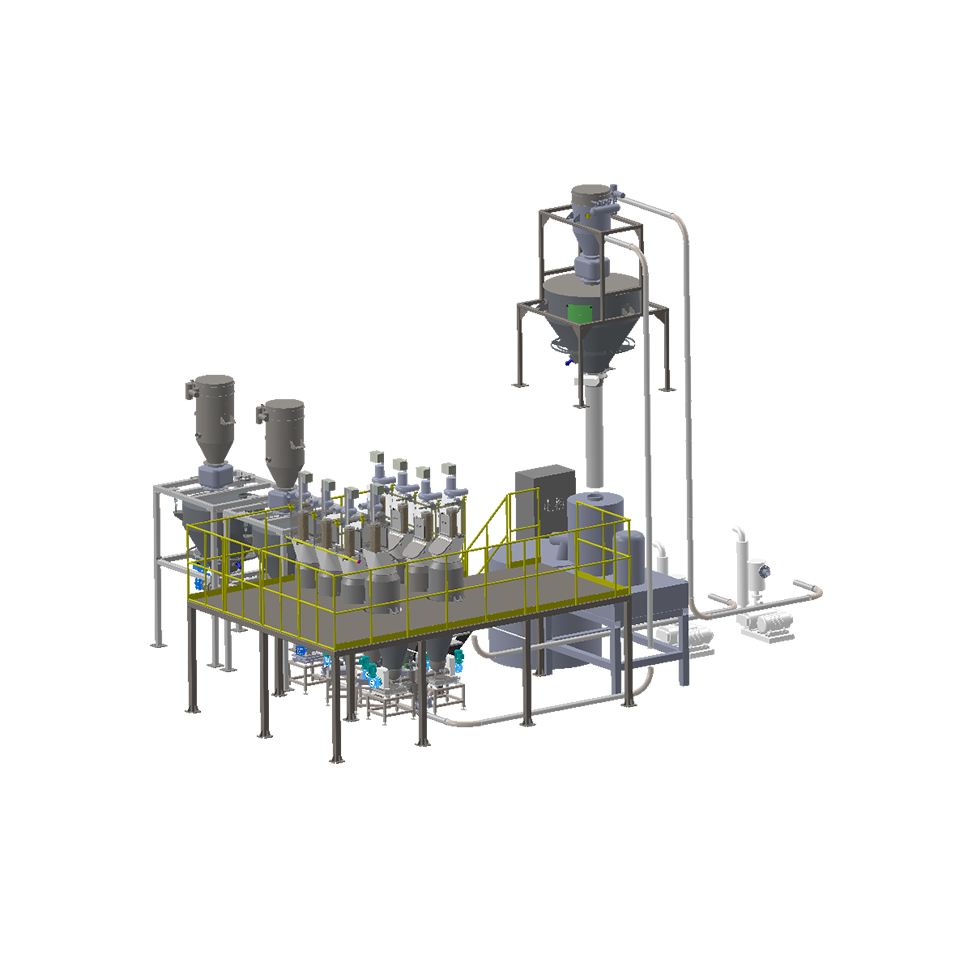

JOYU high-speed mixer feeding system is designed as a modular floor structure for project owners with floor space, using incremental weighing scales to meet the needs of automatic feeding。

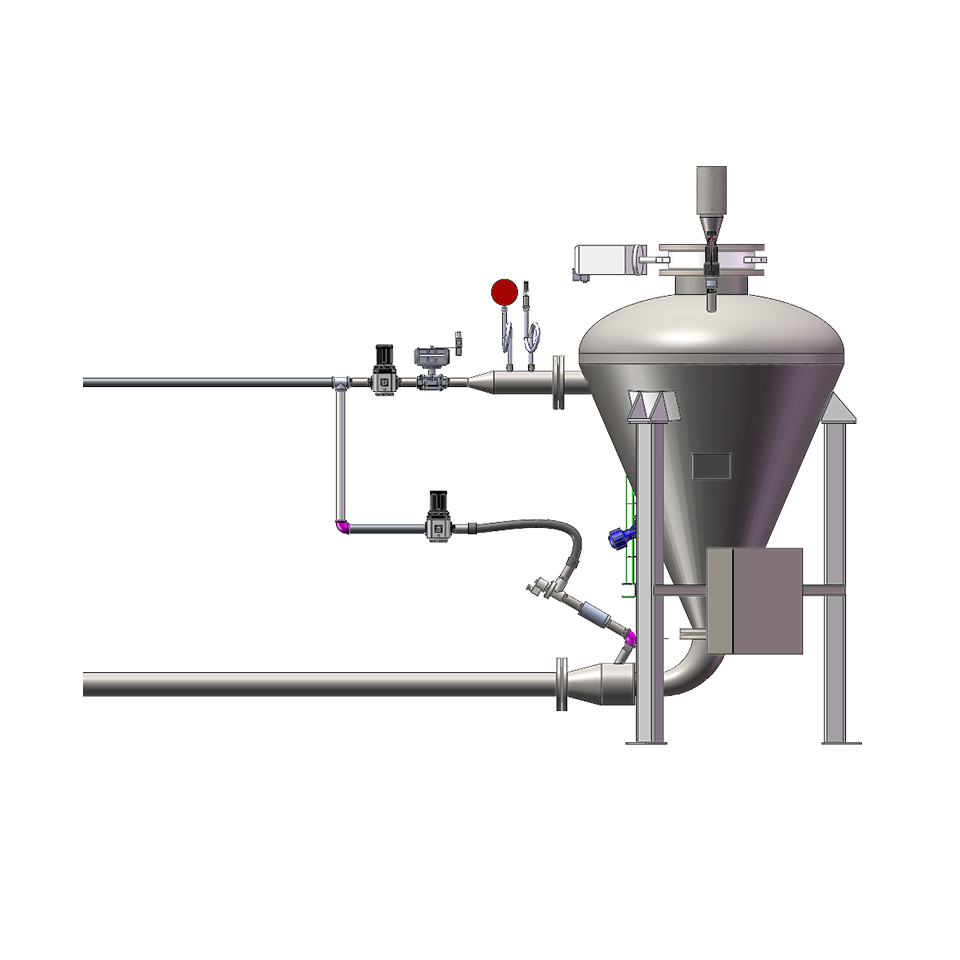

Dilute phase and dense phase conveying methods are optional

JOYU high-speed mixer feeding system can adopt dilute phase negative pressure conveying technology or dense phase positive pressure conveying technology according to the on-site layout and floor height, to meet the needs of automatic feeding.

Weight review before feeding

The feeding review function is a standard configuration of the JOYU high mixing machine feeding system, suitable for use on the upper end of the high mixing machine with space, effectively ensuring consistency with the formula quantity, ensuring product quality, and avoiding the occurrence of insufficient or excessive feeding.

Dust collection and recovery system

The dust collection and recovery system is an important component of the JOYU high-speed mixer feeding system, which completes the dust collection work in the dust generation section during the process of raw material feeding, metering, transportation, and air pressure buffering. It is connected to the peripheral air network or independently equipped with a dust collector to complete the dust collection function, reducing PM2.5 to the minimum value and ensuring the health of employees in the working environment.

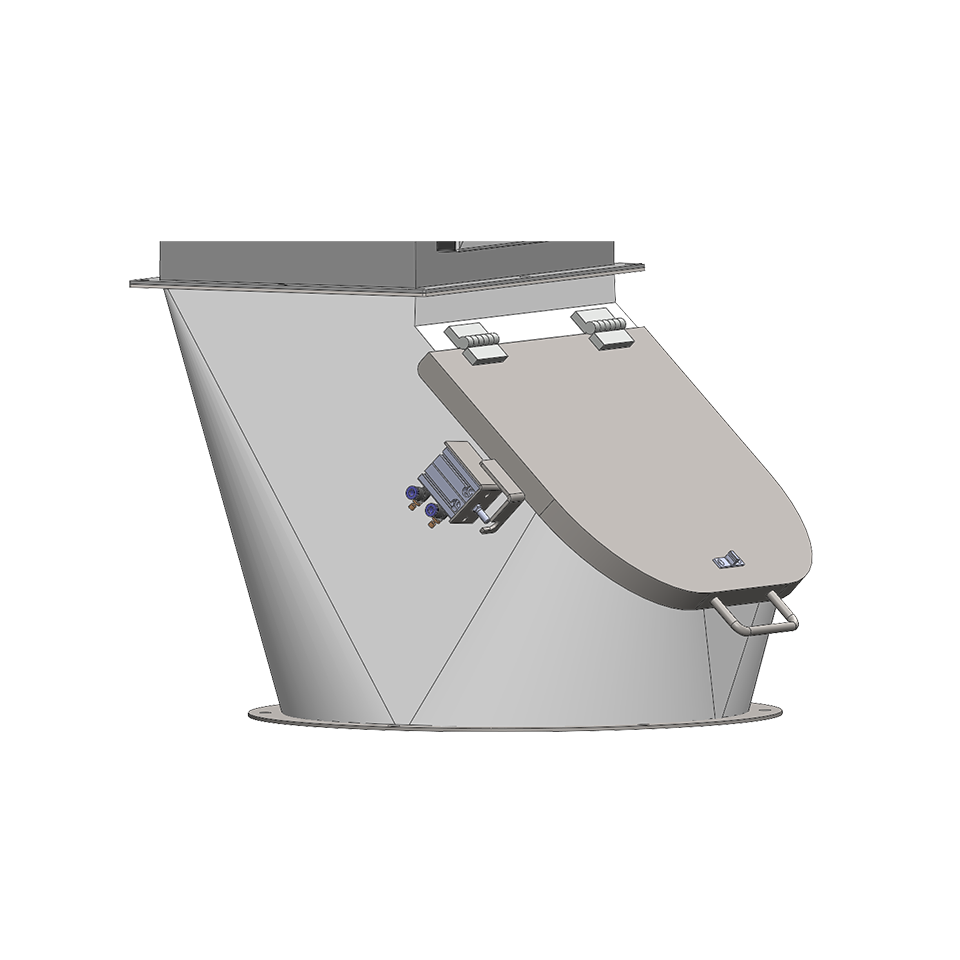

Cylinder lock effectively ensures feeding safety

The combination of barcode error prevention and cylinder lock can prevent errors in raw material feeding, and improving the accuracy of raw materials is the foundation of error free ingredients

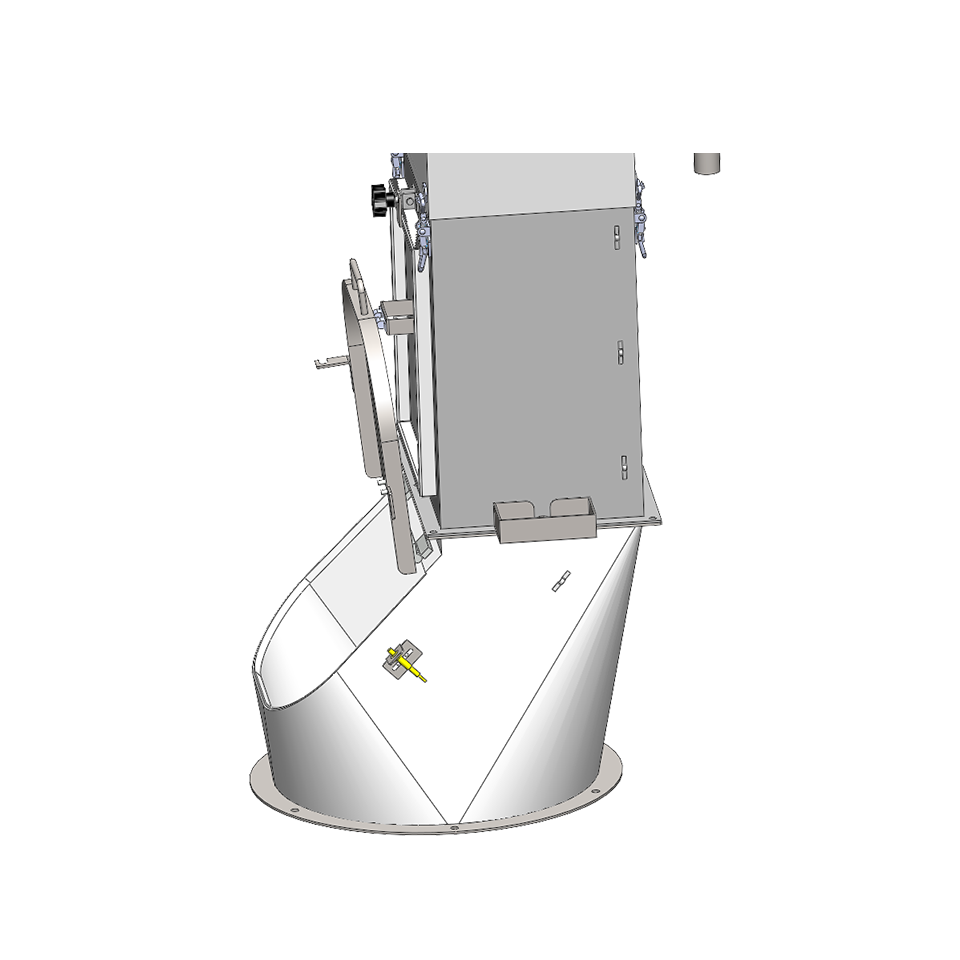

The bead design effectively ensures the safety of opening the door without slipping

The door opening and feeding are stable, and the door panel does not slip. The loose and flexible ball clamping door panel design is very suitable for industrial applications, and it is faultless to use

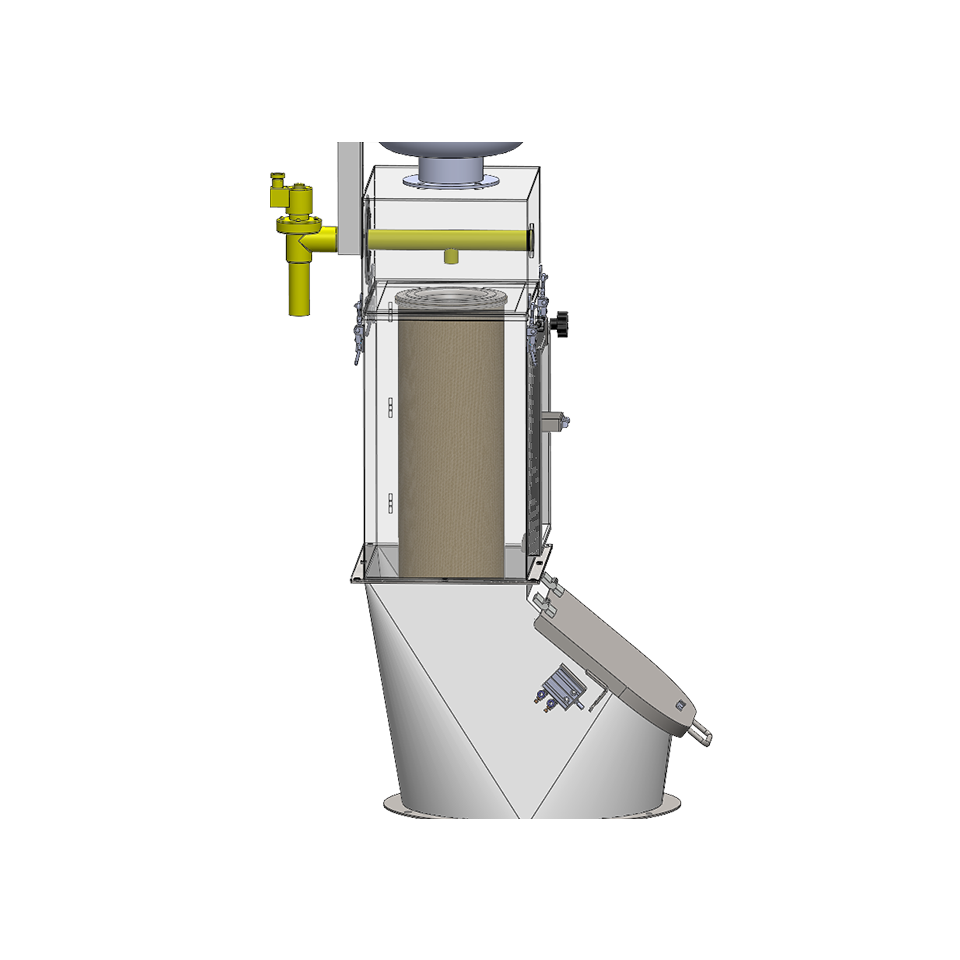

Pulse back blowing effectively ensures no waste of raw materials

The combination of independent fan design and pulse control instrument achieves better dust removal effect, and the adsorbed raw materials are returned to the silo without material loss or waste.
