Metering Upper auxiliary system

Upper auxiliary system

Automatic design of automatic batching and feeding of auxiliary materials for lifting mixer JOYU upper auxiliary machine system is designed precisely for the automatic feeding of the mixer, and the product model is rich. It integrates the automatic batching of various auxiliary materials, oil and rubber material review, which can reduce the manual feeding amount and improve the batching accuracy to a greater extent. Each JOYU auxiliary system, regardless of the variety and complexity of carbon black varieties, the diversity of oil viscosity, or the characteristics of ton bale feeding and small bale feeding, can provide automatic feeding solutions and complete equipment with higher accuracy and better dust collection effect according to different space, mixer size and capacity requirements.

下载文件

功能与集成

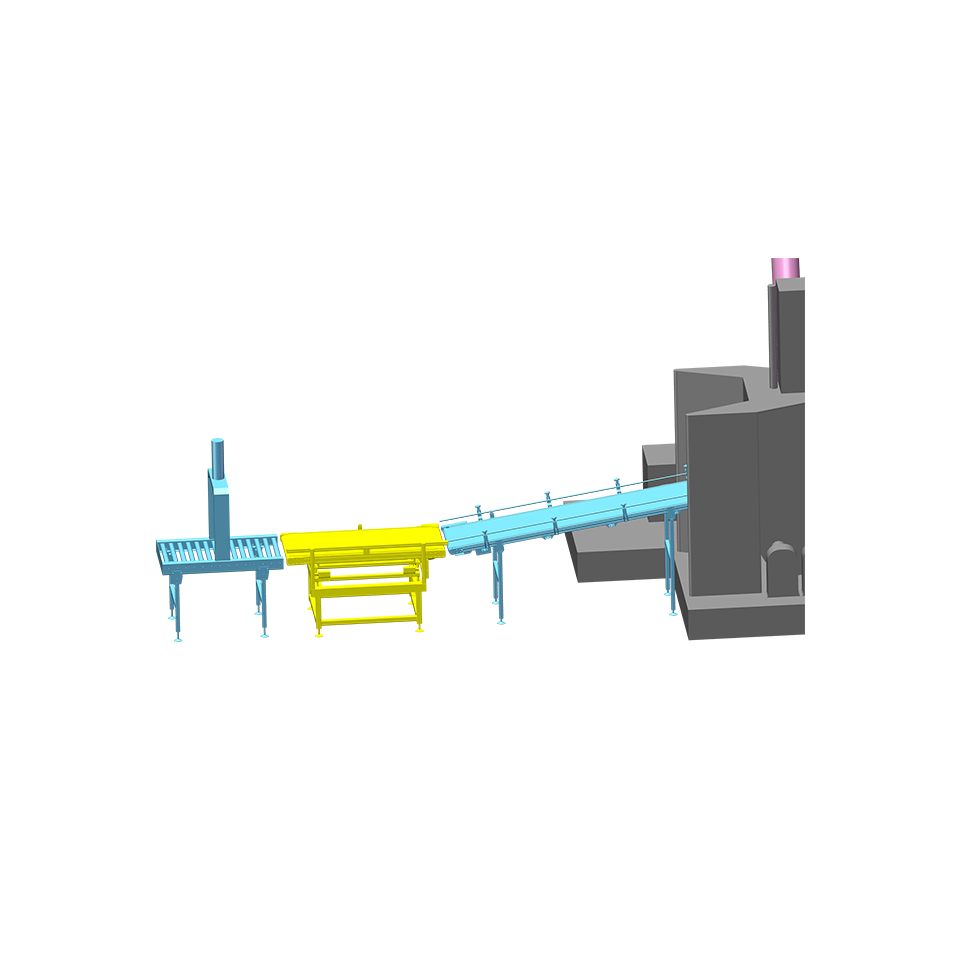

Design that is not limited by space

JOYU auxiliary system is not limited by the field space, flat or floor design options, make full use of the advantages of field equipment layout design, to meet the needs of auxiliary, oil automatic weighing and adhesive feeding.

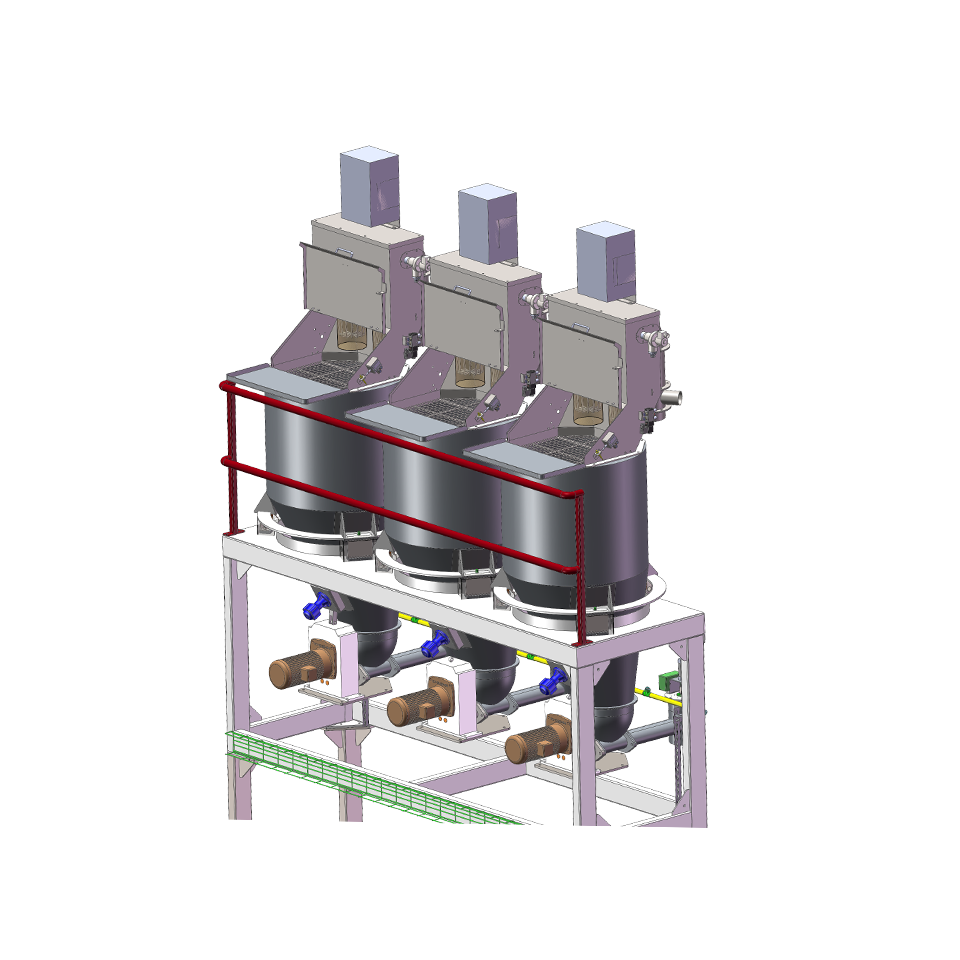

Small packaging raw materials feed environmental protection dust removal

Patent number: ZL 2020 2 1629398.2 Meet the needs of 25kg packet feed and dust handling, pulse blowback module effectively ensure the removal of dust and allow the adsorption of fine substances back into the silo, no waste of raw materials. The design of these re-drop silos, and more environmental factors, underpin the highly automated and employee health assurance of the JOYU control system.

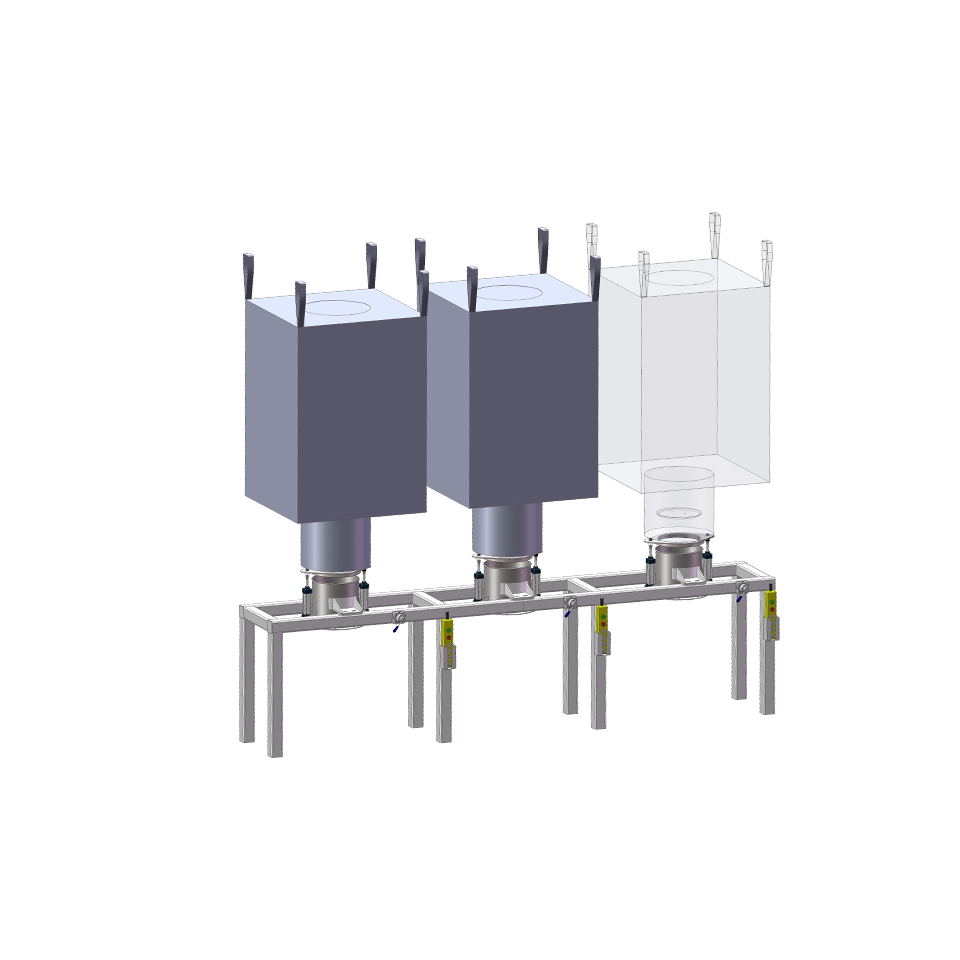

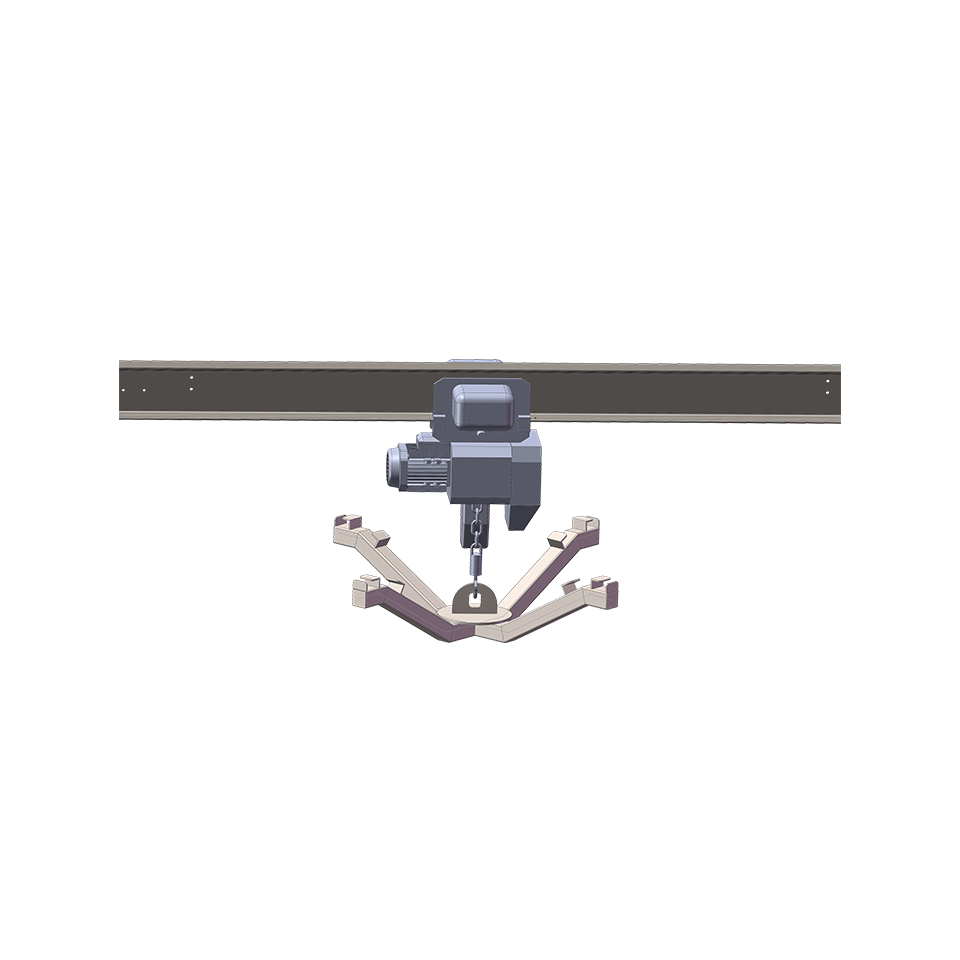

Ton Packaging Automatic Feed into Warehouse

JOYU designed ton pack automatic lifting and delivery, Can lift and transport tons of bags of raw materials to the corresponding ton unloading level, Fixed the discharge round through a ton packet unloading bracket, Effective unloading safety and fast unloading, saving labor.

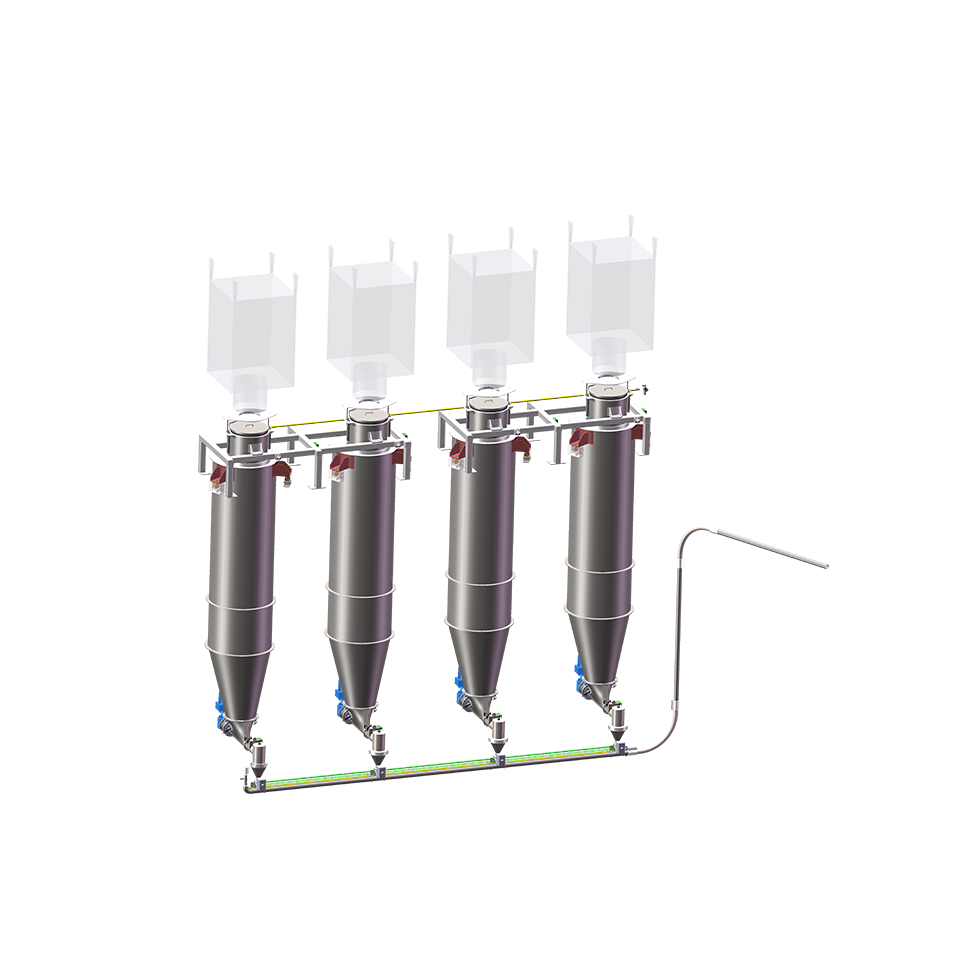

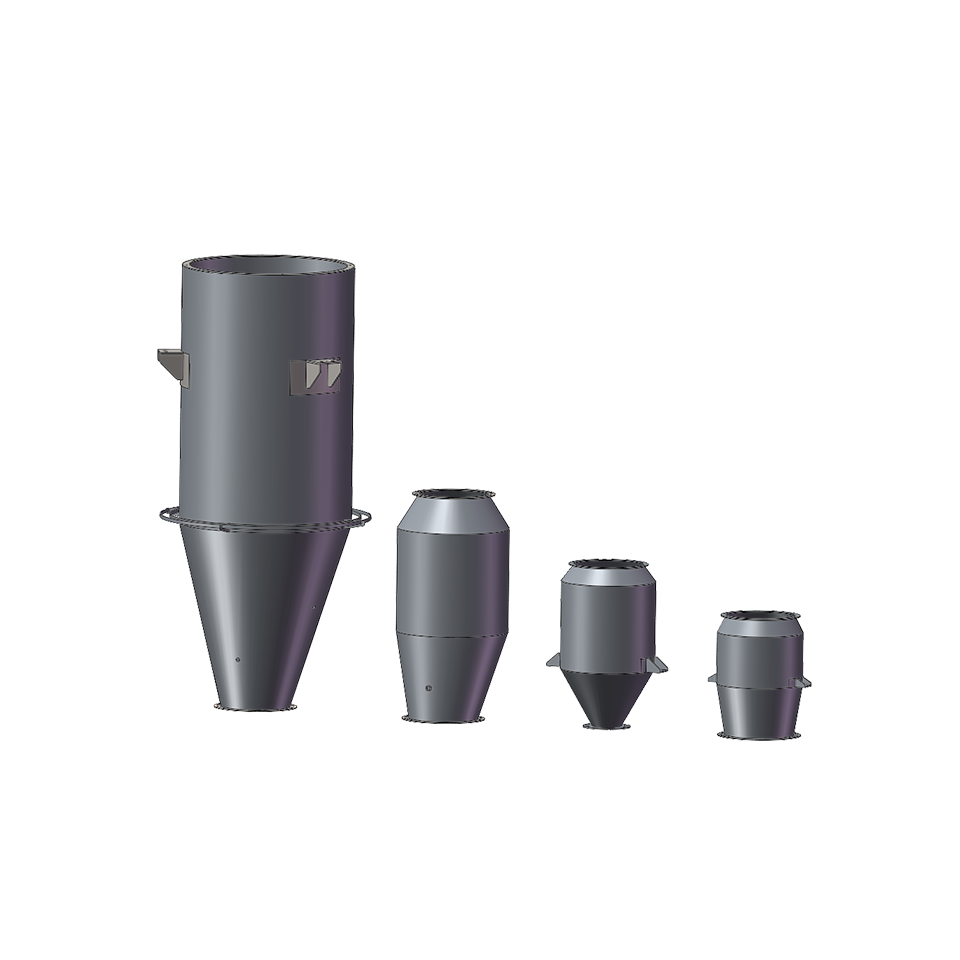

Flexible Design of Storage Capacity

JOYU auxiliary machine system according to the user raw material variety and quantity of flexible customization, Can provide 0.1 cubic to 5 cubic and other specifications of circular symmetrical silos, Eccentric silos are available for selection, supporting the application of different patented technologies such as in-silo decompression technology, anti-overhead technology, unloading smoothness technology, screw and negative pressure conveying.

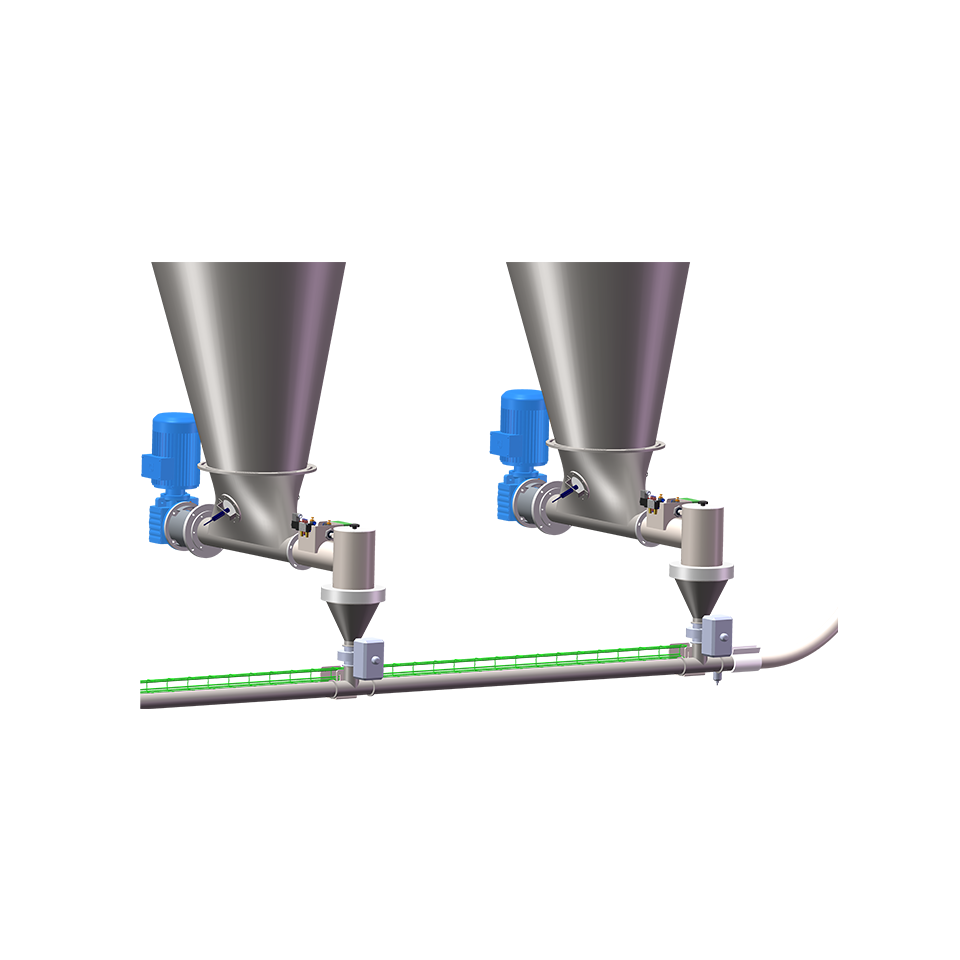

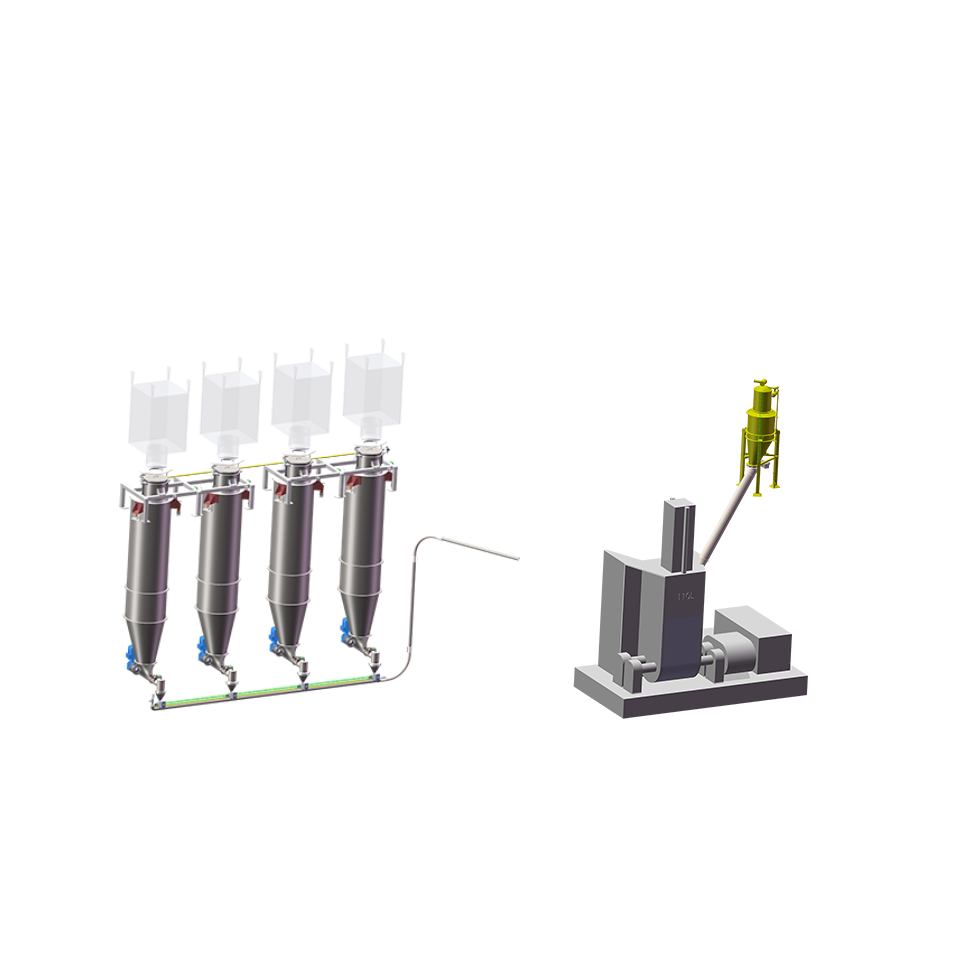

High Precision Reduction Measurement Negative Pressure Conveying Technology

Patent number: ZL 2020 2 1629400.6 JOYU auxiliary system set reduction metering technology, negative pressure conveying technology in one, without manual intervention to automatically complete metering, conveying function, metering accuracy.

Pre-feed weight review to ensure accurate feed

Weight review before the refinery is the standard function of the JOYU auxiliary system. Ensure that each batch of material is within the accuracy required by the formulation. Effective assurance and recipe quantity to ensure product quality, Avoid the phenomenon of less or more investment.

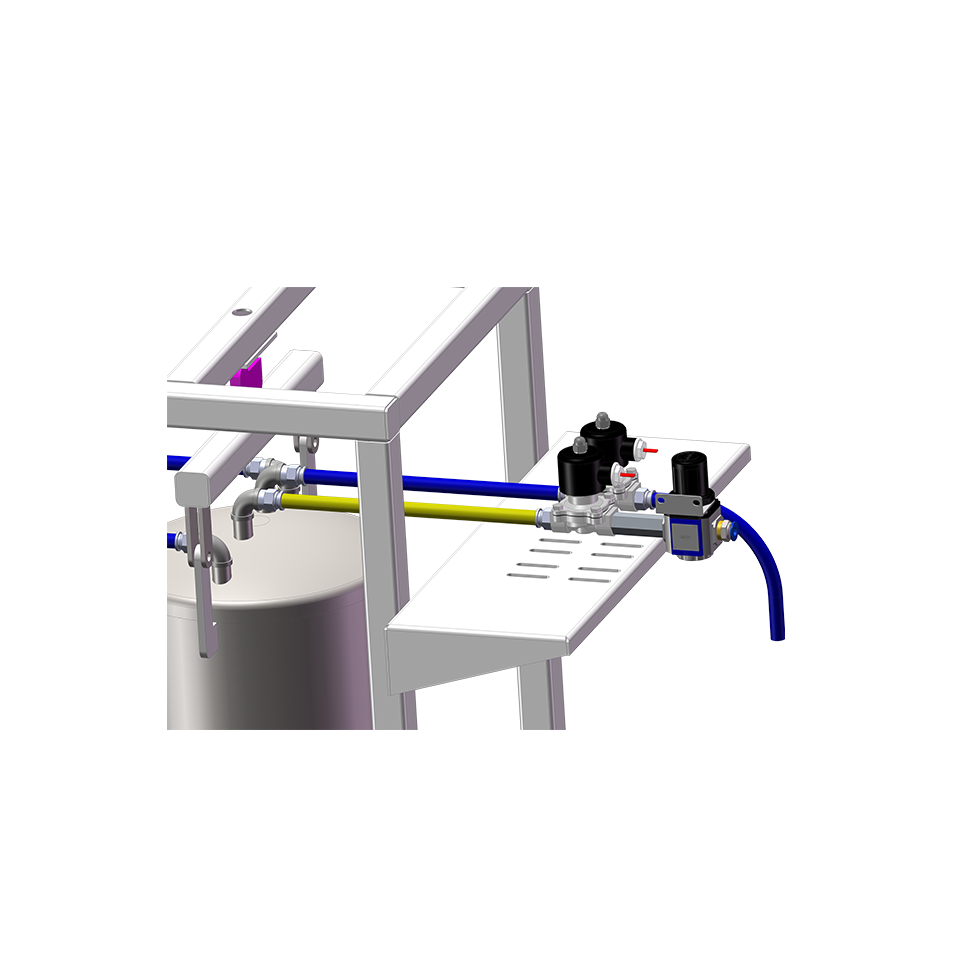

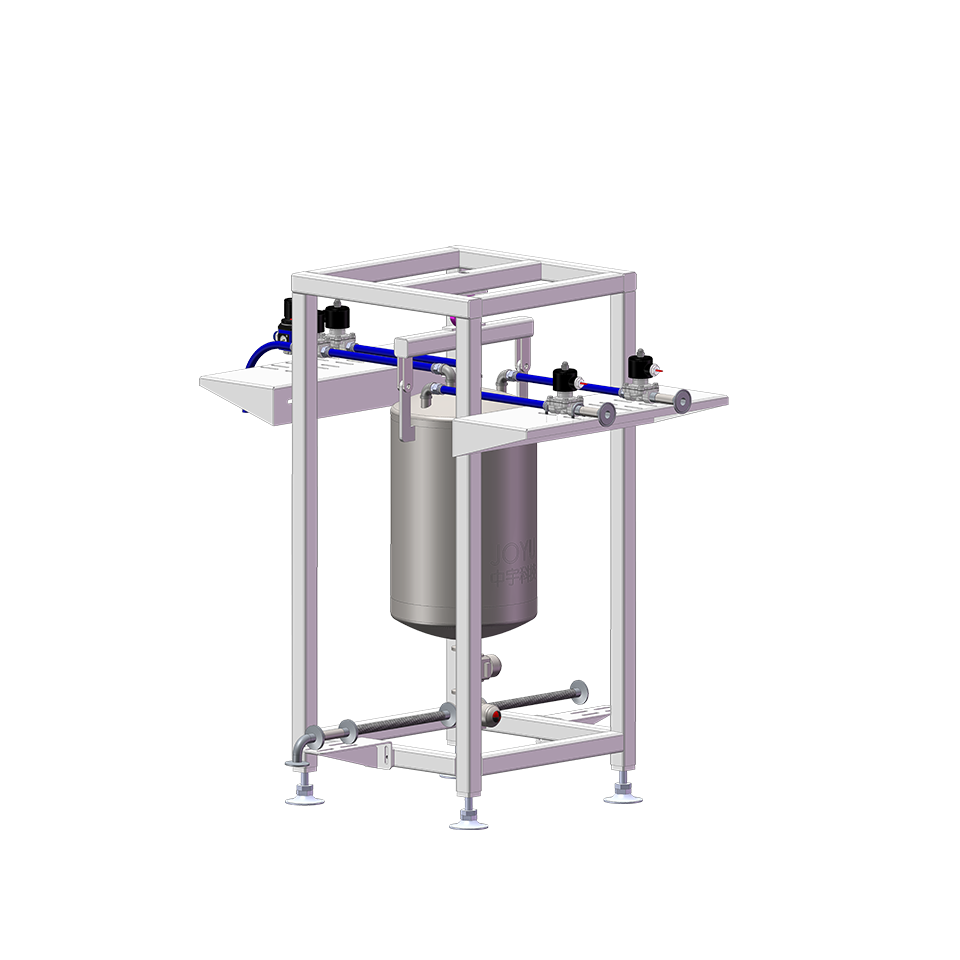

Automatic metering of oils

The JOYU auxiliary system can choose whether to add oil according to the needs of the formulation, depending on the characteristics of the oil to choose whether to heat insulation function.

Reexamination Weight and Feed

The JOYU auxiliary system provides reexamination weight and storage of data, together with auxiliaries and oils, to store ingredients data and generate data reports.

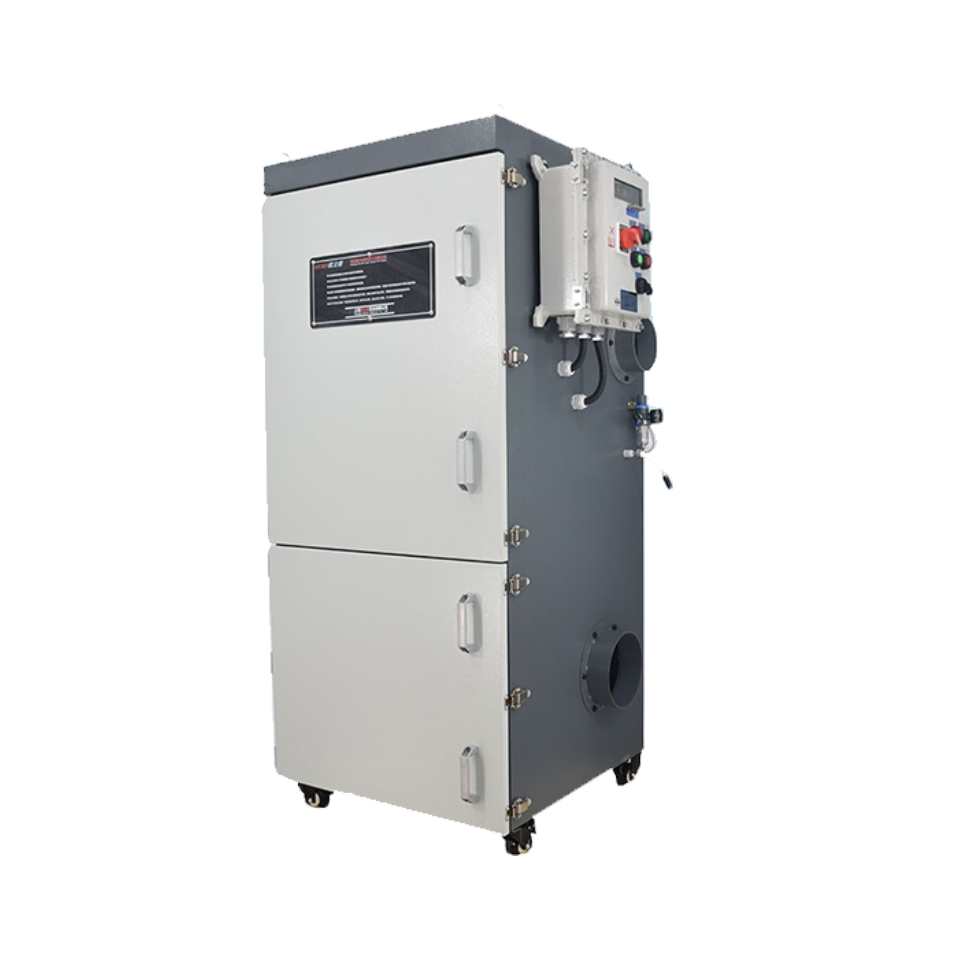

Dust Collection and Recovery System

Dust collection system is an important component of JOYU auxiliary system, completed from ton packet (Packet) dust collection work during the entire process, such as feed into the warehouse, metering, delivery, review, feed into the refiner, connected with the peripheral wind network, or independent supporting dust collector to complete the dust removal function.

Manual casting

The user-friendly design of the feed door belt is fixed, can also choose the bar code anti-error and cylinder lock use, effectively prevent errors in the feed
Contact bead design to ensure the safety of opening door without slipping

Open door feed solid door plate does not slip, loose degree of contact bead clamping door panel design is very suitable for industrial applications.

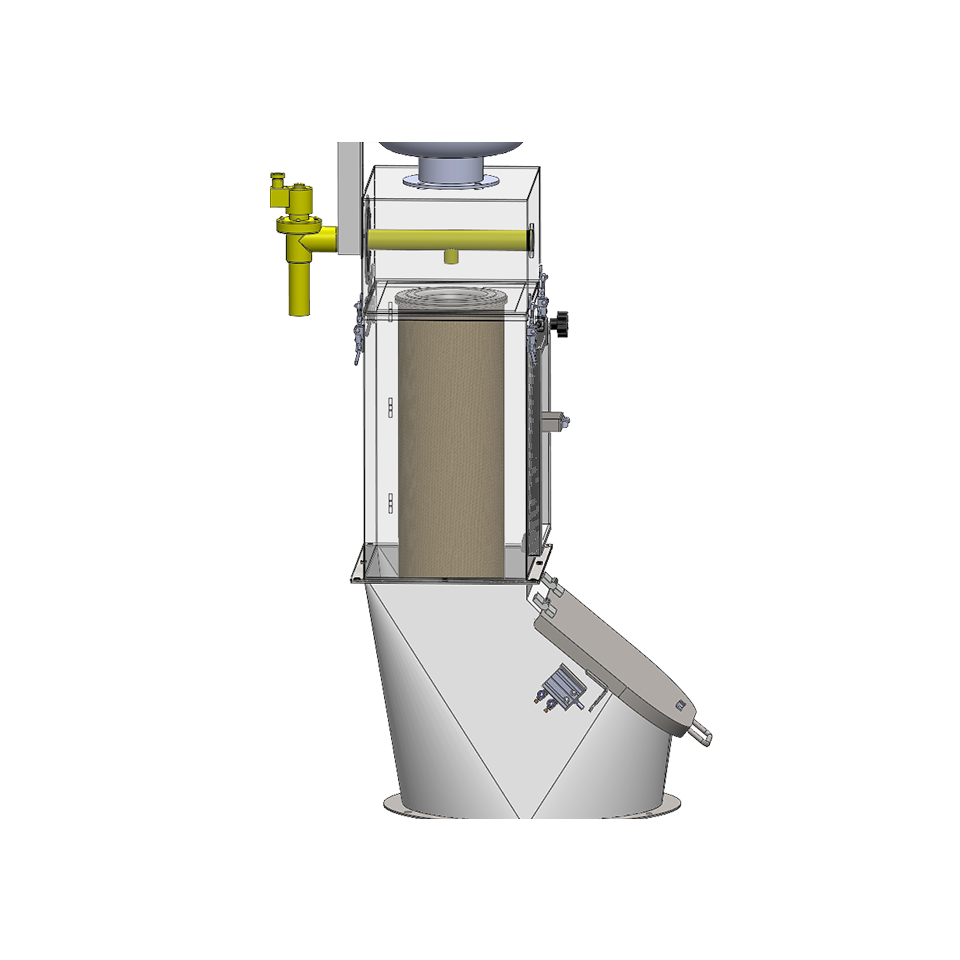

Pulse blowback effectively ensures that raw materials are not wasted

Independent fan design and pulse controller combination, to achieve better dust removal effect, adsorption of the raw materials back into the warehouse, no material loss waste.
Automatic Packet Breaking

Provide a single packet automatic package break combination, effectively reduce the workload, improve automation, break the raw material into the corresponding auxiliary warehouse automatically.
