Bulk bag unloading statation

Performance validated design and construction.JOYU ton bag unloading station is designed specifically for rigorous work in critical applications. Each JOYU ton package unloading system, regardless of its specific design or application, operates on a fully welded structural frame chassis of a specific process; Different from the commonly used design for unloading tons in the market. JOYU's modular and integrated structure and control infrastructure enable all automation and control functions to be centralized into one PLC control unit. This JOYU integrated construction and control infrastructure lays the foundation for reducing total cost of ownership, relative to the common concept of different "islands" of equipment and control, while also improving process performance and the accuracy of production data shared throughout the enterprise.

下载文件

功能与集成

Ton Bag Support Frame

JOYU ton bag unloading station is designed specifically for rigorous work in critical applications. Each JOYU bulk bag unloading station, regardless of its specific design or application, operates on a fully welded frame chassis with a specific process; It is different from the ordinary unloading design of ton bags in the market. The standard support frame is made of heavy-duty structural steel and tubular steel, continuously welded to provide excellent structural integrity. The combination of the upper and lower frames of the ton bag unloading station can safely support and accommodate ton packaging bags and their materials.

Bag hanger

JOYU ton bag hanger can safely handle and improve control of the ton bag during the lifting and positioning of the ton bag to the ton bag support frame. The JOYU ton bag hanger includes design options to improve the material flow of the bag, reduce material waste, and prevent the ton bag lining from inverting through the bag opening and entering downstream process equipment during unloading.

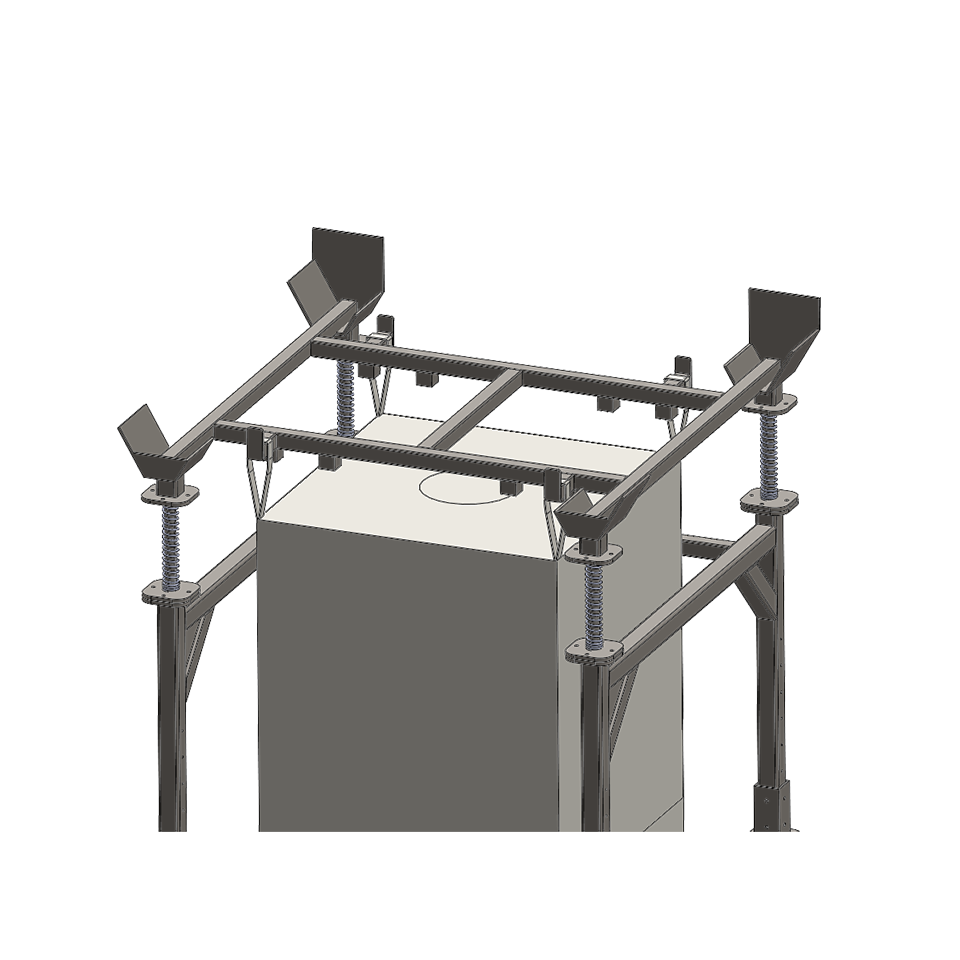

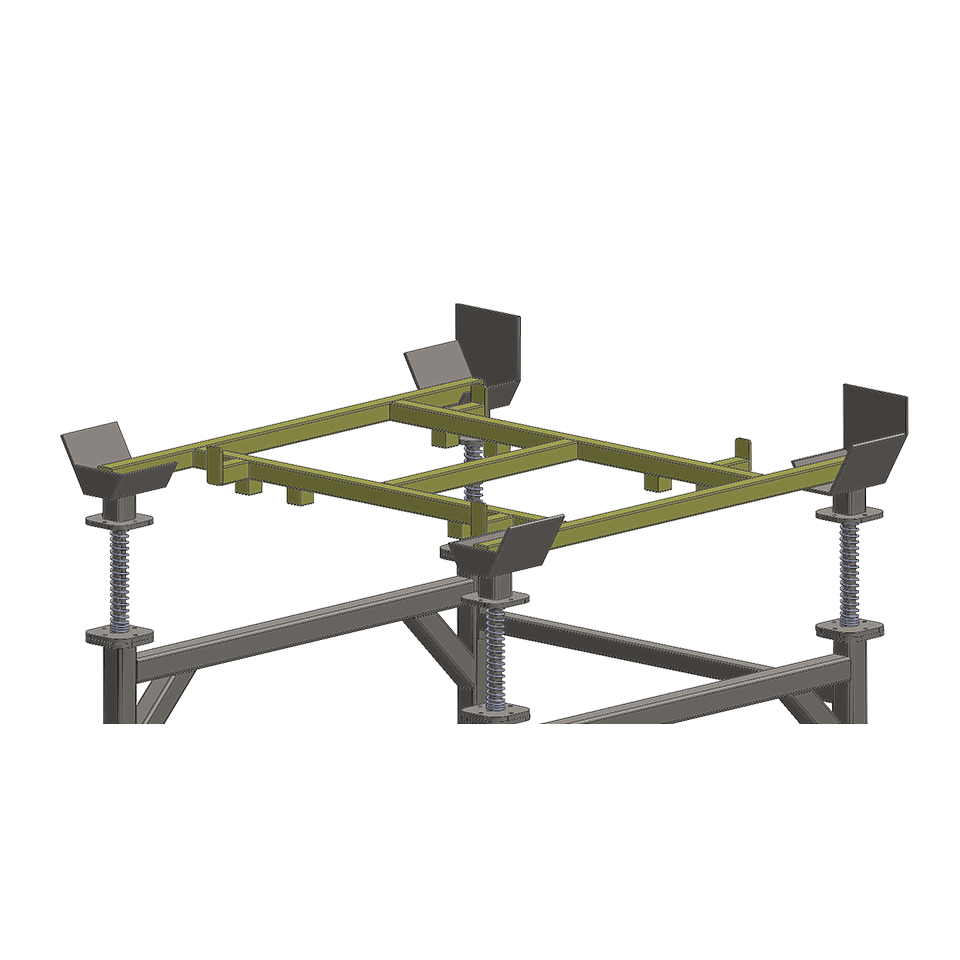

Material flow regulation system

When the characteristics of the materials contained in the ton bag hinder normal material flow and are close to the bag clamping adjustment rod, JOYU integrated material adjustment system is a necessary component of JOYU ton bag unloading station. The JOYU ton bag material adjustment system aims to continuously induce material flow to ensure stable, safe, and reliable material unloading.

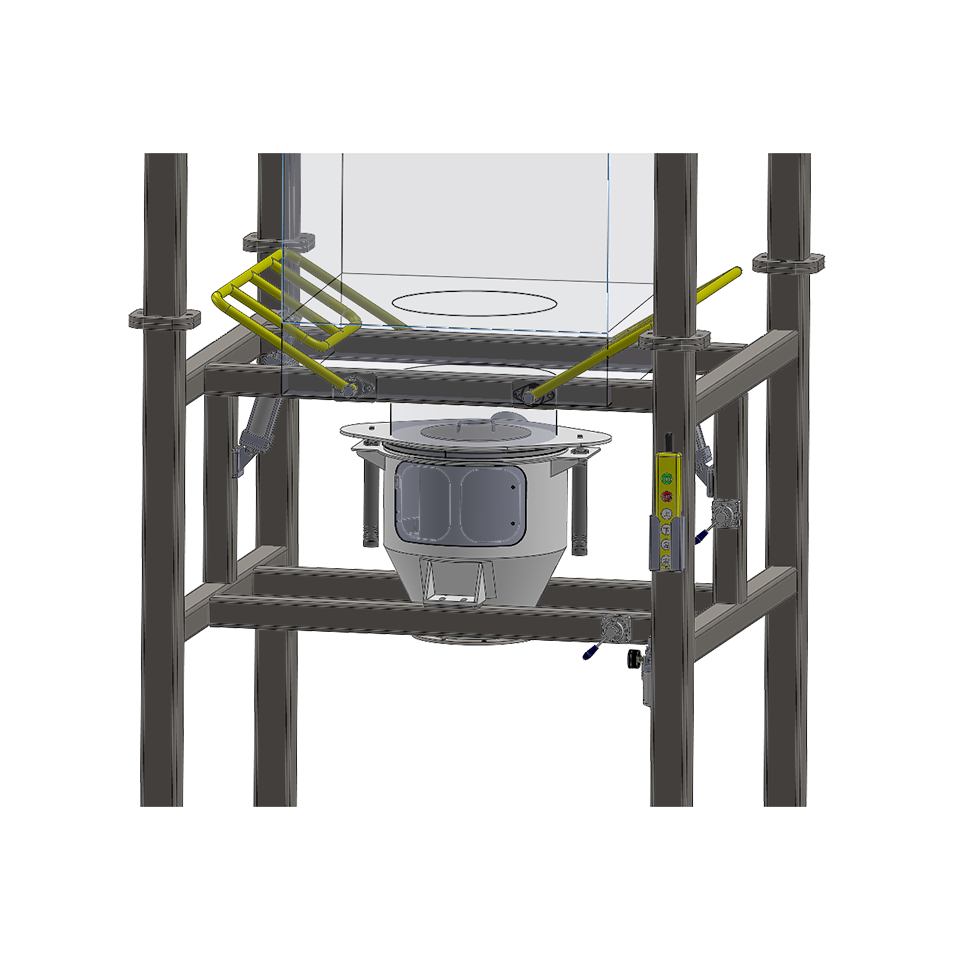

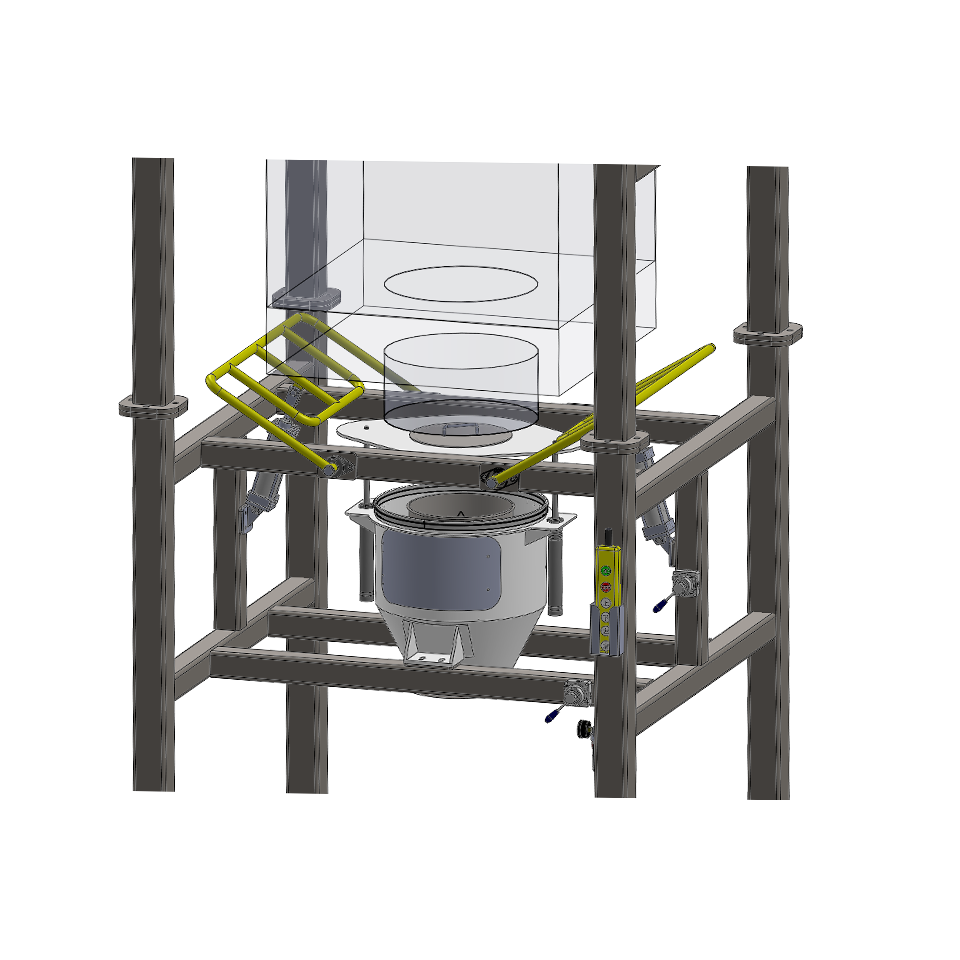

Ton bag outlet port

When used to interconnect the ton bag outlet with the ton bag unloader, the specifications for the JOYU ton bag outlet interface first need to determine two important factors: the characteristics of the discharged material and the style of the ton bag used. It is from these factors that the JOYU ton bag nozzle interface can be best specified to improve operator protection, reduce material pollution, and optimize process efficiency
